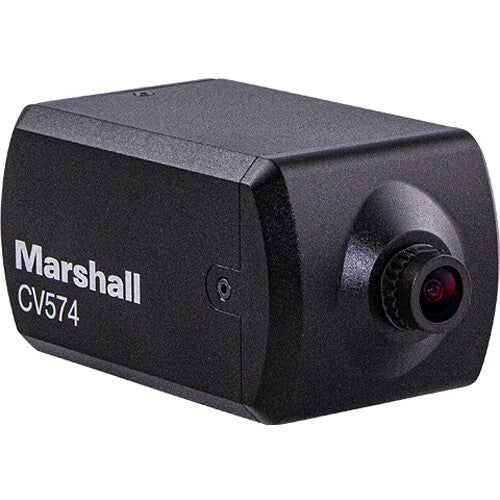

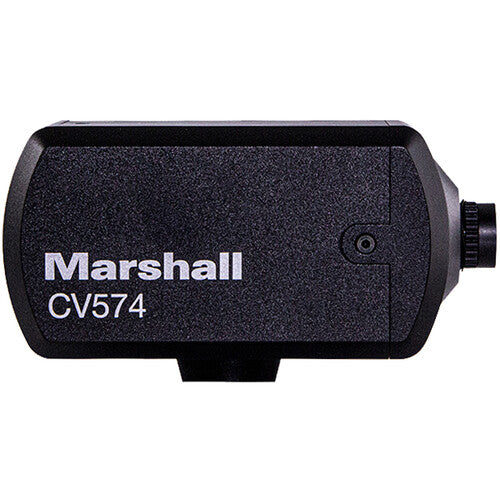

The Marshall CV574 Miniature UHD 4K Camera offers exceptional versatility for professional live production environments. Equipped with an 8.5MP sensor, it delivers stunning UHD 4K60 video through IP streaming, NDI|HX3, and HDMI outputs. Its compact design and M12 lens mount, including a 4mm wide-angle lens with an 85° field of view, allow flexible placement and customization. Powered and controlled via a single PoE cable, this camera seamlessly integrates into broadcast, corporate, sports, and other demanding settings, providing reliable, high-quality imaging in a discreet form factor.
Features
- Capture up to UHD 4K60 Video

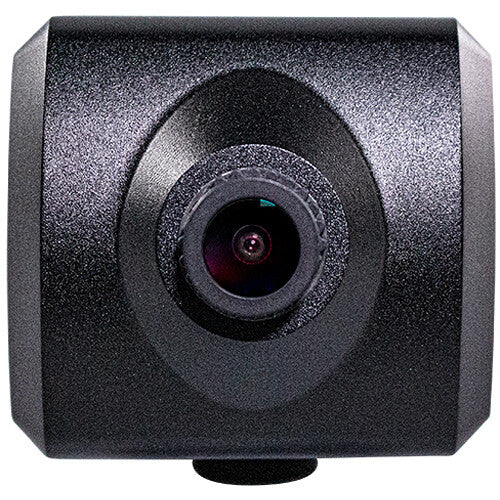

- M12 Mount with Removable 4mm Lens
- IP, NDI|HX, SRT, and HDMI Outputs
- Stream, Control, and Power via PoE
- NDI, VISCA-over-RS-485, IP Control
Specifications
| Compatibility |
Marshall M12 Lenses / CV-PT-HEAD Pan/Tilt Head |

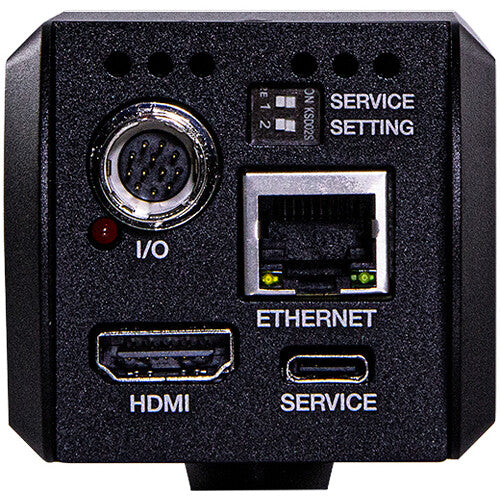

| Inputs/Outputs |
|
| -USB I/O |
1 x USB-C 2.0 Female Input |
| -Video I/O |
1x RJ45 Input/Output |
|
1x HDMI Output |
| -Audio I/O |
- |
| -Other I/O |
12-Pin I/O for Pan/Tilt Head |
| Wireless |
- |
| Power Source |
PoE |
| Power Consumption |
6 W |
| Mounting |
- |
| Color |
Black |
| Material of Construction |
Aluminum |
| Weight |
- |
What's in the box
- Marshall Electronics CV574 Miniature UHD 4K Camera with NDI|HX3, SRT & HDMI
- 4mm M12 Lens
- Limited 2-Year Manufacturer Warranty
