Description

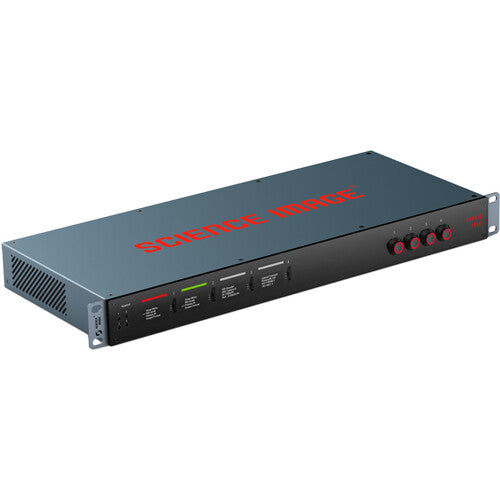

The Marshall Science Image Studio Edge is a sophisticated 4-channel 12G-SDI/HDMI bi-directional encoder and decoder designed for seamless 4K60 NDI workflows. Housed in a compact 1 RU chassis, it delivers high-density, multi-channel NDI conversion with exceptional performance and reliability. Ideal for professional studios and digital signage applications, it supports extended video and audio transmission via integrated fiber connections, ensuring pristine signal quality over long distances. Powered by advanced high-bandwidth NDI encoding and decoding technology, this device streamlines complex media management in a single, efficient unit.
Features
- 4K SDI/HDMI/Full NDI Converter
- Video Formats up to 4K60
- HDMI, 12G-SDI & RJ45 NDI Connectivity
- Up/Down/Cross Conversion of 27 Formats
- Dedicated LED Screen for Each Channel
- VISCA & PELCO-P/D Protocol Support
- 1 RU Short-Depth Chassis
Specifications

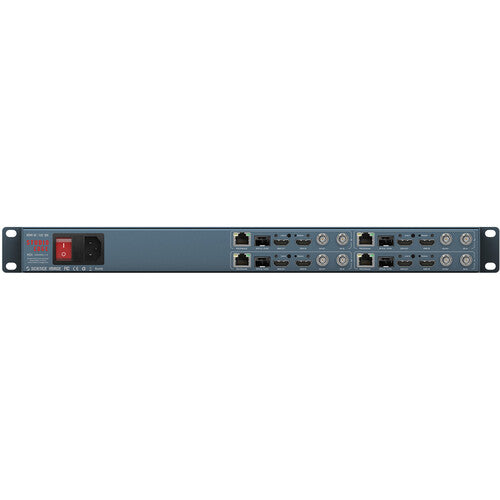

| Inputs / Outputs | |
| Video Inputs | Input |
| 4x BNC (12G-SDI) Female | |
| 4x HDMI 2.0 Female | |
| Output | |
| 4x BNC (12G-SDI) Female | |
| 4x HDMI 2.0 Female | |
| Input/Output | |
| 4x opticalCON | |
| Audio Inputs | Input |
| 4x 1/8" / 3.5 mm TRS Stereo Analog Female (Loop Output) | |
| 4x 1/8" / 3.5 mm TRRS Headphone/Microphone Stereo Analog Female | |
| Video Outputs | BNC Input/Output |
| 3840 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps | |
| 2560 x 1440 at 23.98/24/25 fps | |
| 1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps | |
| 1920 x 1080PsF at 23.98/24/25/29.97/30 fps | |
| 1920 x 1080i at 50/59.94/60 fps | |
| 1280 x 720 at 50/59.94/60 fps | |
| HDMI Input/Output | |
| 3840 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps | |
| 2560 x 1440 at 23.98/24/25 fps | |
| 1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps | |
| 1920 x 1080PsF at 23.98/24/25/29.97/30 fps | |
| 1920 x 1080i at 50/59.94/60 fps | |
| 1280 x 720 at 50/59.94/60 fps | |
| Fiber Input/Output | |
| 3840 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps | |
| 2560 x 1440 at 23.98/24/25 fps | |
| 1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps | |
| 1920 x 1080PsF at 23.98/24/25/29.97/30 fps | |
| 1920 x 1080i at 50/59.94/60 fps | |
| 1280 x 720 at 50/59.94/60 fps | |
| Other I/O | Input/Output |
| 4x RJ45 (LAN) | |
| Expansion Slots | No |
| Input Video Format | Analog, Unspecified Digital Signal Input/Output |
| Output Video Format | Analog, Unspecified Digital Signal Input/Output |
| Embedded Audio | Fiber/HDMI/SDI |
| Video Standard Compliance | SMPTE: 259M/292M/296M/372M/424M/425M/ST-2081-1/ST-2082-1/ST-2082-10 |
| Power | |
| Power I/O | 1x IEC C13 Input |
| PoE Support | - |
| Power Consumption | - |
| Environmental | - |
| Operating Temperature | - |
| Storage Temperature | - |
| Operating Humidity | - |
| General | |
| Dimensions | 50.8 x 30.5 x 15.2 cm |
| Weight | 3.6 kg |
What's in the box
- SCIENCE IMAGE Studio Edge 4-Channel Rackmount Bidirectional 4K SDI/HDMI/Full NDI Converter (1 RU)
- Limited 3-Year Manufacturer Warranty
