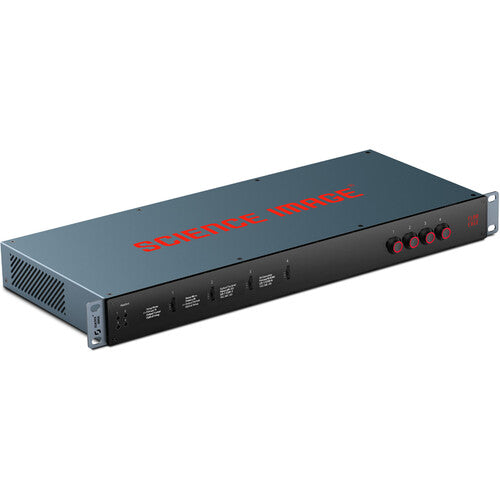

The Marshall Science Image 4-Channel Encoder/Decoder offers seamless bi-directional conversion with high-bandwidth NDI and 12G-SDI/HDMI 4K60 support. Designed for professional environments, it features four independent channels, each with dedicated controls, LED displays, and comprehensive input/output options. Housed in a compact 1 RU chassis, this device simplifies complex multi-source, multi-destination workflows by integrating advanced up/down/cross conversion capabilities into a single, efficient rackmount unit. Ideal for demanding video production setups requiring versatile, high-quality signal management.
Features
- 4K Up/Down/Cross Converter
- Video Formats up to 4K60
- HDMI 2.0 & 12G-SDI Connectivity

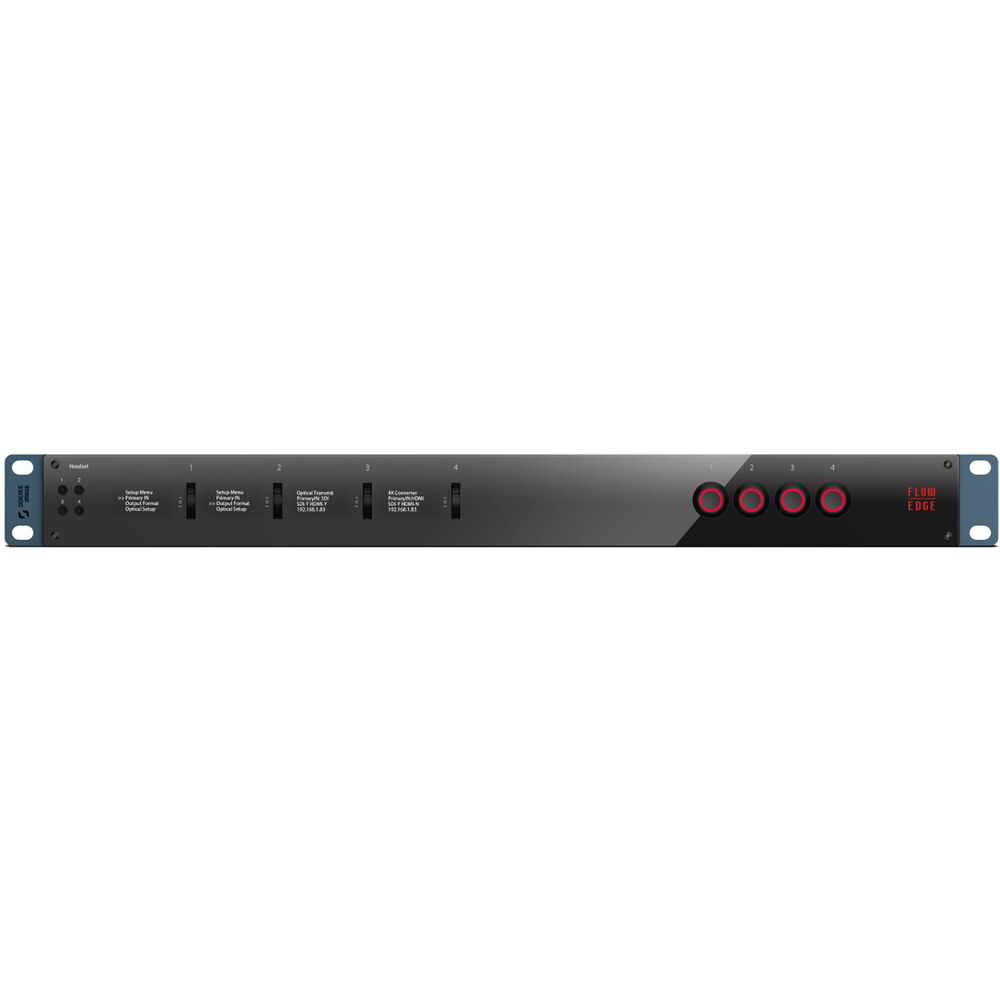

- Dedicated LED Screen for Each Channel
- 1 RU Short-Depth Chassis
Specifications

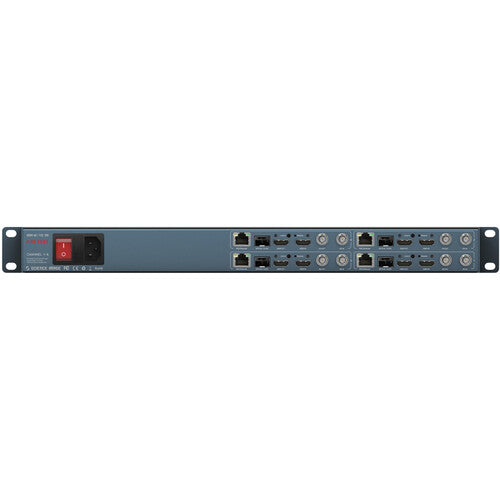

| Inputs / Outputs |
|
| Video Inputs |
Input/Output |
|
4x BNC (12G-SDI) Female |
|
4x HDMI 2.0 Female |
|
4x opticalCON (12G-SDI) Female |
| Audio Inputs |
Input |
|
4x 1/8" / 3.5 mm TRS Stereo Analog Female (Loop Output) |
|
4x 1/8" / 3.5 mm TRRS Headphone/Microphone Stereo Analog Female |
| Video Outputs |
Input/Output |
|
4x BNC (12G-SDI) Female |
|
4x HDMI 2.0 Female |
|
4x opticalCON (12G-SDI) Female |
| Other I/O |
Input/Output |
|
4x RJ45 (LAN) |
| Expansion Slots |
|
| Input Video Format |
|
| Output Video Format |
|
| Embedded Audio |
Fiber/HDMI/SDI |
| Video Standard Compliance |
SMPTE: 259M/292M/296M/372M/424M/ST-2081-1/ST-2082-1/ST-2082-10 |
| Power |
|
| Power I/O |
1x IEC C13 Input |
| PoE Support |
- |
| Power Consumption |
- |
| Environmental |
- |
| Operating Temperature |
- |
| Storage Temperature |
|
| Operating Humidity |
- |
| General |
- |
| Dimensions |
50.8 x 30.5 x 15.2 cm |
| Weight |
3.6 kg |
What's in the box
- SCIENCE IMAGE Flow Edge 4-Channel Rackmount 4K Up/Down/Cross Converter (1 RU)
- Limited 3-Year Manufacturer Warranty
