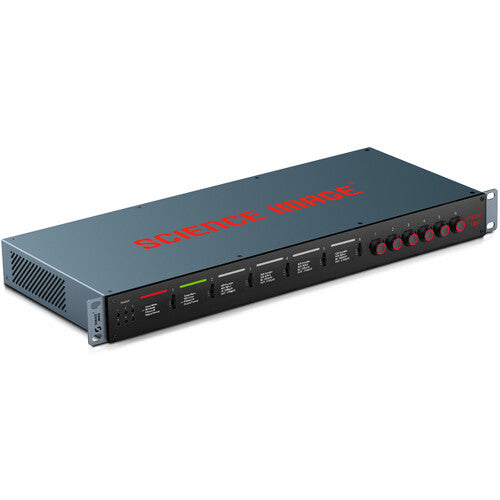

The Marshall Science Image Studio Edge is a sophisticated 6-channel rackmount converter designed for seamless bidirectional 4K SDI/HDMI and full NDI workflows. Housed in a compact 1 RU chassis, it delivers high-bandwidth 12G-SDI and HDMI 4K60 encoding and decoding, enabling efficient management of multiple NDI sources and destinations. Ideal for professional studios and digital signage applications, its integrated fiber connections ensure reliable video and audio transmission over long distances without signal loss, combining advanced performance with versatile connectivity in a streamlined solution.
Features
- 4K SDI/HDMI/Full NDI Converter
- Video Formats up to 4K60
- HDMI, 12G-SDI & RJ45 NDI Connectivity
- Up/Down/Cross Conversion of 27 Formats
- Dedicated LED Screen for Each Channel
- VISCA & PELCO-P/D Protocol Support
- 1 RU Short-Depth Chassis
Specifications

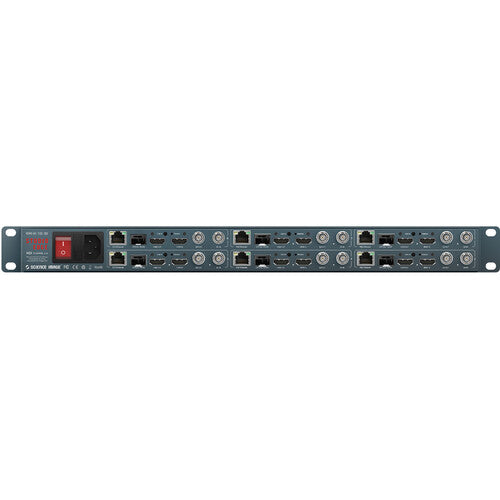

| Inputs / Outputs |
|
| Video Inputs |
Input |
|
6x BNC (12G-SDI) Female |
|
6x HDMI 2.0 Female |
|
Output |
|
6x BNC (12G-SDI) Female |
|
6x HDMI 2.0 Female |
|
Input/Output |
|
6x opticalCON |
| Audio Inputs |
Input |
|
6x 1/8" / 3.5 mm TRS Stereo Analog Female (Loop Output) |
|
6x 1/8" / 3.5 mm TRRS Headphone/Microphone Stereo Analog Female |
| Video Outputs |
BNC Input/Output |
|
3840 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps |
|
2560 x 1440 at 23.98/24/25 fps |
|
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps |
|
1920 x 1080PsF at 23.98/24/25/29.97/30 fps |
|
1920 x 1080i at 50/59.94/60 fps |
|
1280 x 720 at 50/59.94/60 fps |
|
HDMI Input/Output |
|
3840 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps |
|
2560 x 1440 at 23.98/24/25 fps |
|
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps |
|
1920 x 1080PsF at 23.98/24/25/29.97/30 fps |
|
1920 x 1080i at 50/59.94/60 fps |
|
1280 x 720 at 50/59.94/60 fps |
|
Fiber Input/Output |
|
3840 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps |
|
2560 x 1440 at 23.98/24/25 fps |
|
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps |
|
1920 x 1080PsF at 23.98/24/25/29.97/30 fps |
|
1920 x 1080i at 50/59.94/60 fps |
|
1280 x 720 at 50/59.94/60 fps |
| Other I/O |
Input/Output |
|
6x RJ45 (LAN) |
| Expansion Slots |
No |
| Input Video Format |
|
| Output Video Format |
|
| Embedded Audio |
Fiber/HDMI/SDI |
| Video Standard Compliance |
SMPTE: 259M/292M/296M/372M/424M/425M/ST-2081-1/ST-2082-1/ST-2082-10 |
| Power |
|
| Power I/O |
1x IEC C13 Input |
| PoE Support |
- |
| Power Consumption |
- |
| Environmental |
- |
| Operating Temperature |
- |
| Storage Temperature |
- |
| Operating Humidity |
- |
| General |
- |
| Dimensions |
50.8 x 30.5 x 15.2 cm |
| Weight |
3.6 kg |
What's in the box
- SCIENCE IMAGE Studio Edge 6-Channel Rackmount Bidirectional 4K SDI/HDMI/Full NDI Converter (1 RU)
- Limited 3-Year Manufacturer Warranty
