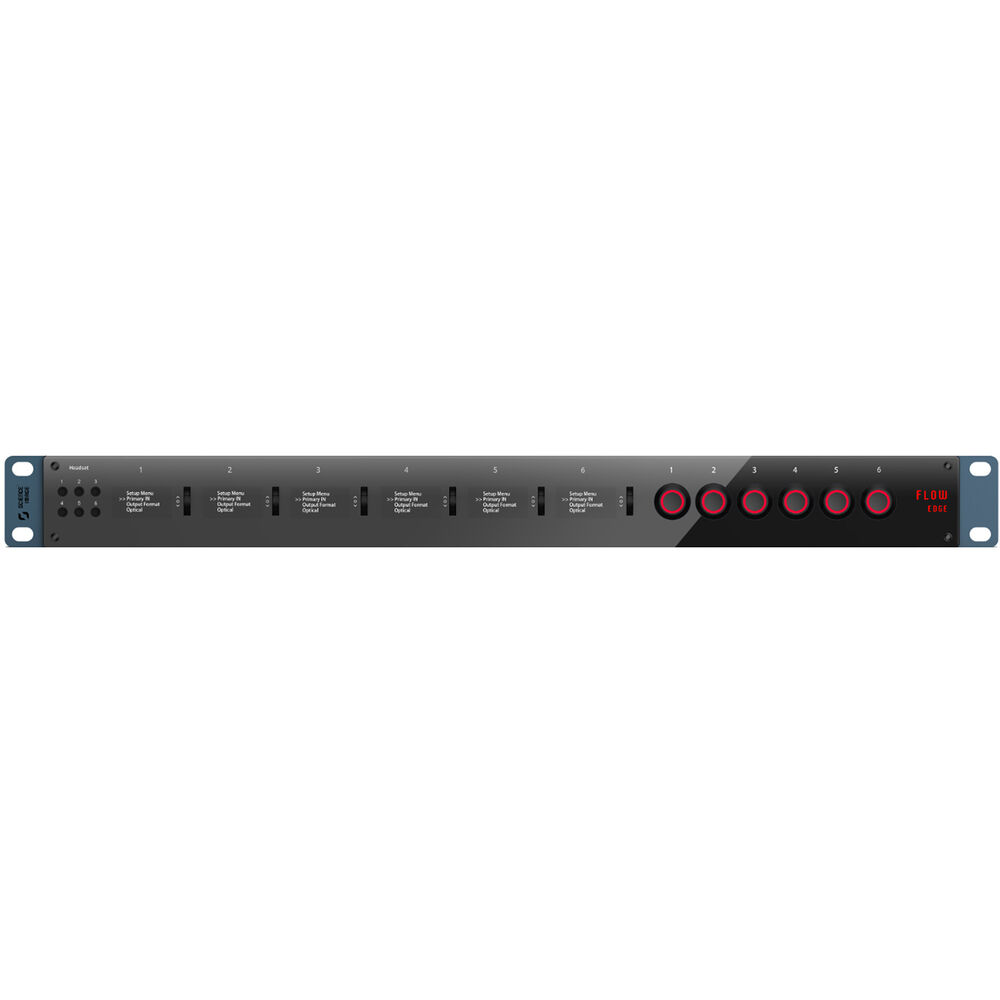

The Marshall Science Image 6-Channel Encoder/Decoder offers seamless bi-directional conversion with high-bandwidth NDI, 12G-SDI, and HDMI 4K60 support. Designed for professional environments, it integrates six independent channels of SDI/HDMI input and output within a compact 1 RU chassis. Each channel features dedicated controls and displays, enabling precise management of up/down and cross conversions across multiple video formats. This sophisticated solution streamlines complex multi-source workflows, delivering reliable, high-quality video processing in a single, efficient rackmount unit.
Features
- 4K Up/Down/Cross Converter
- Video Formats up to 4K60
- HDMI 2.0 & 12G-SDI Connectivity
- Dedicated LED Screen for Each Channel
- 1 RU Short-Depth Chassis
Specifications
| Inputs / Outputs |
|
| Video Inputs |
Input/Output |
|
6x BNC (12G-SDI) Female |
|
6x HDMI 2.0 Female |
|
6x opticalCON (12G-SDI) Female |
| Audio Inputs |
Input |
|
5x 1/8" / 3.5 mm TRS Stereo Analog Female (Loop Output) |
|
6x 1/8" / 3.5 mm TRRS Headphone/Microphone Stereo Analog Female |
| Video Outputs |
BNC Input/Output |
|
3840 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps |
|
2560 x 1440 at 23.98/24/25 fps |
|
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps |
|
1920 x 1080PsF at 23.98/24/25/29.97/30 fps |
|
1920 x 1080i at 50/59.94/60 fps |
|
1280 x 720 at 50/59.94/60 fps |
|
HDMI Input/Output |
|
3840 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps |
|
2560 x 1440 at 23.98/24/25 fps |
|
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps |
|
1920 x 1080PsF at 23.98/24/25/29.97/30 fps |
|
1920 x 1080i at 50/59.94/60 fps |
|
1280 x 720 at 50/59.94/60 fps |
|
Fiber Input/Output |
|
3840 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps |
|
2560 x 1440 at 23.98/24/25 fps |
|
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps |
|
1920 x 1080PsF at 23.98/24/25/29.97/30 fps |
|
1920 x 1080i at 50/59.94/60 fps |
|
1280 x 720 at 50/59.94/60 fps |
| Audio Outputs |
-
|
| Other I/O |
-
|
|
|
|
|
| Expansion Slots |
-
|
| Format Support |
-
|
| Input Video Format |
-
|
| Output Video Format |
-
|
| Embedded Audio |
Fiber/HDMI/SDI |
| Standards |
|
| Video Standard Compliance |
SMPTE: 259M/292M/296M/372M/424M/ST-2081-1/ST-2082-1/ST-2082-10 |
| Power |
|
| Power I/O |
1x IEC C13 Input |
| PoE Support |
- |
| Power Consumption |
- |
| Environmental |
- |
| Operating Temperature |
- |
| Storage Temperature |
- |
| Operating Humidity |
- |
| General |
- |
| Dimensions |
50.8 x 30.5 x 15.2 cm |
| Weight |
3.6 kg |
What's in the box
- SCIENCE IMAGE Flow Edge 6-Channel Rackmount 4K Up/Down/Cross Converter (1 RU)
- Limited 3-Year Manufacturer Warranty
