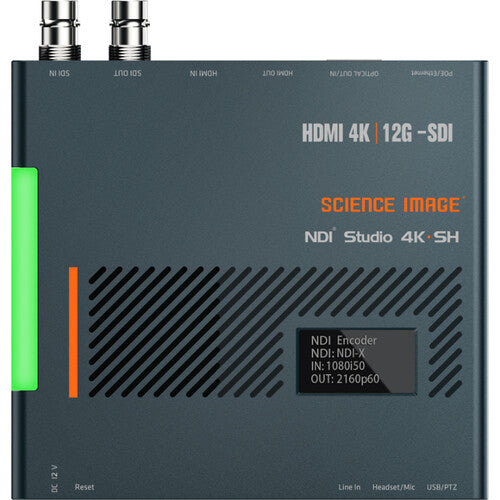

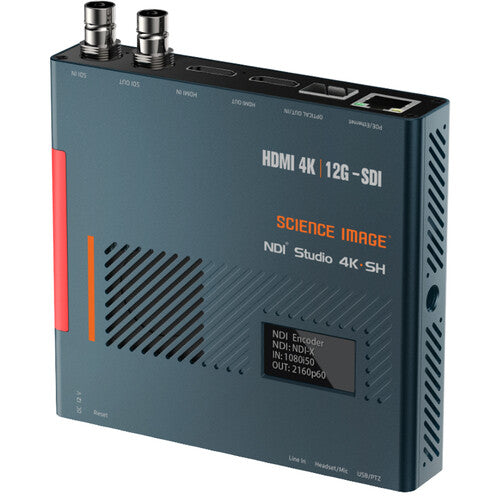

The Marshall Science Image Full NDI Bi-Directional Encoder, Decoder & Converter supports seamless 12G-SDI and HDMI 2.0 input/output for UHD 4K up to 2160p60 video. Featuring built-in optical transceivers, it transmits signals up to 12 miles, ideal for demanding live productions. A matte tally light ensures clear on-set status, while a 1.3" OLED screen displays real-time operational data. With a USB-A port for PTZ camera integration and stereo audio input/output, this device delivers precise, professional video and audio over NDI networks with sophisticated control and flexibility.
Features
- Encode/Decode up to 2160p60 Video
- 12G-SDI I/O, HDMI 2.0 I/O
- Large Tally Light
- 1.3" OLED Display Screen
- PTZ Control via USB-A
- 3.5mm Audio Input/Output
- PoE+ Support
- Included Power Supply
Specifications
| Inputs / Outputs |
|
| Video Inputs |
- |
| Audio Inputs |
- |
| Video Outputs |
- |
| Other I/O |
- |
| Expansion Slots |
- |
| Input Video Format |
- |
| Output Video Format |
- |
| Embedded Audio |
- |
| Video Standard Compliance |
- |
| Power |
|
| Power I/O |
1x Barrel (9 to 18 VDC ) Input |
| PoE Support |
PoE+ 802.3at, PoE 802.3af |
| Power Consumption |
Device: 18 W |
| Environmental |
- |
| Operating Temperature |
- |
| Storage Temperature |
- |
| Operating Humidity |
- |
| General |
- |

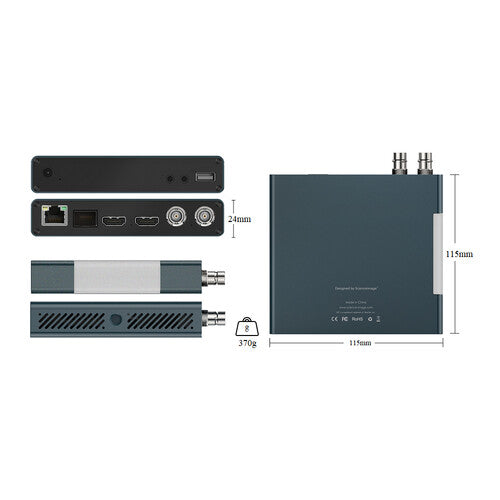

| Dimensions |
125 x 115 x 24 mm |
| Weight |
370 g |
What's in the box
- SCIENCE IMAGE NDI Bidirectional UHD 4K 12G-SDI/HDMI Encoder/Decoder
- 12 VDC Power Supply
- 4 x International Conversion Plug
- Limited 1-Year Manufacturer Warranty
