The Marshall Science Image Mount Bracket is designed for seamless integration with the NDI HD Mini, STUDIO-2, and FLOW-2 devices. Featuring 1/4"-20 and 3/8" mounting holes, this bracket offers versatile installation options, ensuring secure and stable positioning. Crafted to complement compact and professional setups, it enhances workflow efficiency while maintaining a sleek, unobtrusive profile. Ideal for live production and broadcast environments, this mount bracket supports precise alignment for optimal video capture and streaming performance.
Features
- Encode/Decode up to 2160p30 NDI Video
- 3G-SDI I/O, HDMI 1.4 I/O
- Large Tally Light, 1.3" OLED
- 1/4"-200 Mounting Bracket
Specifications
| Inputs / Outputs |
|
| Video Inputs |
1x BNC (3G-SDI) Female |
|
1x HDMI (1.4) Female |
| Audio Inputs |
3.5 mm TRS Stereo Analog Female |
| Video Outputs |
1x BNC (3G-SDI) Female |
| Other I/O |
1x USB-A PTZ Input |
|
1x RJ45 PoE Input |
| Expansion Slots |
No |
| Input Video Format |
SDI (4:4:4 RGB, YUV) |
|
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps |
|
1080i 50/59.94/60 fps |
|
1080PsF 23.98/24/25/29.97/30 fps |
|
720p 50/59.94/60 fps |
|
576i / 625 lines 50 fps |
|
480i / 525 lines 59.94 fps |
| Output Video Format |
SDI (4:4:4 RGB, YUV) |
|
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps |
|
1080i 50/59.94/60 fps |
|
1080PsF 23.98/24/25/29.97/30 fps |
|
720p 50/59.94/60 fps |
|
576i / 625 lines 50 fps |
|
480i / 525 lines 59.94 fps |
| Embedded Audio |
SDI |
| Video Standard Compliance |
SMPTE 259M/292M/296M/372M/424M/425M/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10 |
| Power I/O |
1x Barrel (5 to 18 VDC ) Input |
| PoE Support |
PoE+ 802.3at |
| Power Consumption |
Device: 10 W |
| Operating Temperature |
5 to 40°C |
| Storage Temperature |
-20 to 60°C |
| Operating Humidity |
0 to 90% () |
| Dimensions |
125 x 95 x 22 mm |
| Weight |
270 g |
What's in the box

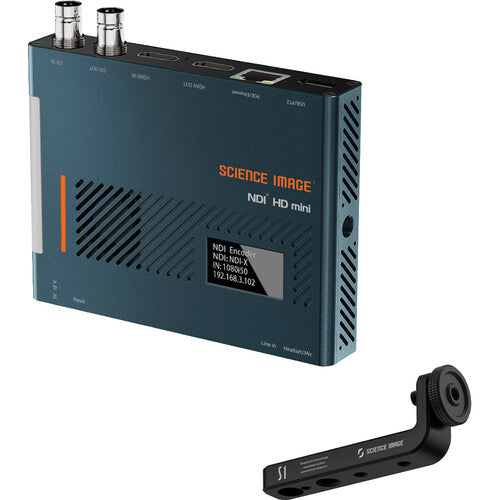

- SCIENCE IMAGE NDI Mini HD Bidirectional 3G-SDI/HDMI Encoder/Decoder
- 12 VDC Power Supply
- 4 x International Conversion Plug
- SCIENCE IMAGE S1 1/4"-20 Threaded Mounting Bracket
