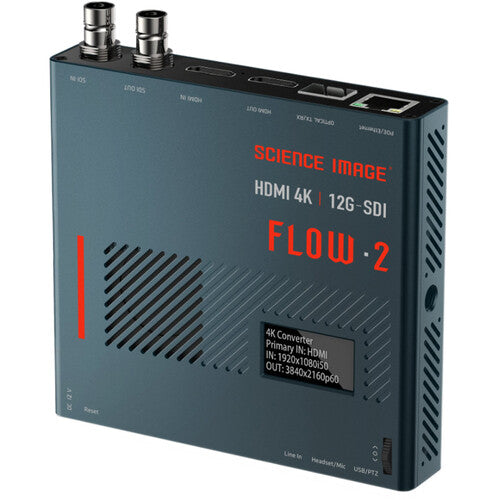

The Marshall Science Image UpDownCross Converter integrates seamless frequency conversion and optical transceiver functionality in a sleek, compact design. Building on the legacy of the FLOW 4K, it features an intuitive scroll wheel for effortless menu navigation and settings adjustment without relying on a web interface. Engineered for professional environments such as broadcasts, large events, and video conferences, it supports 35 conversion formats at up to UHD 4K60. The device enables smooth 12G-SDI and HDMI inter-conversion with a single click, while simultaneously handling 3G/6G/12G signal transmission and reception, ensuring versatile and reliable performance.
Features
- Signal Converter, Receiver/Transmitter
- 12G-SDI I/O, HDMI 2.0 I/O
- Supports up to 4K at 60 Hz
- Conversion to 35 SMPTE/PAL/NTSC Formats

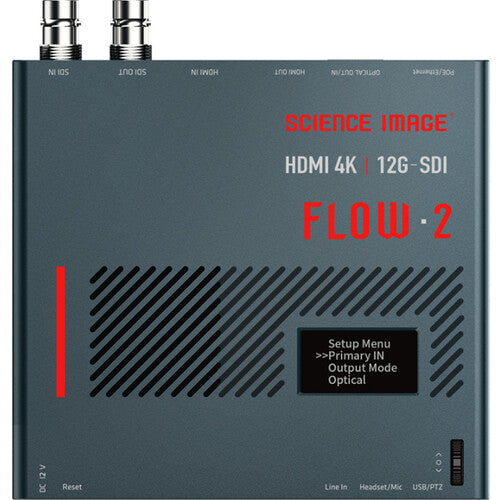

- 1.3" OLED Display Screen
- 3.5mm Audio Input/Output
- PoE Support
- 12V Power Supply Included
Specifications

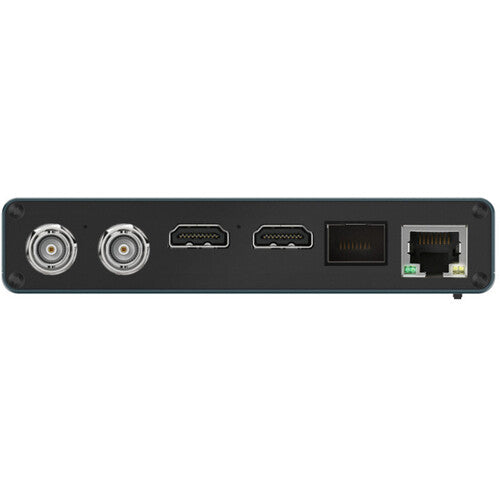

| Inputs / Outputs |
|
| Video Inputs |
|
|
Input |
|
1x BNC (12G-SDI) Female |
|
1x HDMI 2.0 Female |
|
Output |
|
1x BNC (12G-SDI) Female |
|
1x HDMI 2.0 Female |
|
Input/Output |
|
1x Socket for SFP Module (12G-SDI) |
| Audio Inputs |
Input |
|
1x 1/8" / 3.5 mm TRS Analog Female |
| Video Outputs |
Output |
|
1x BNC (12G-SDI) Female |
|
1x HDMI 2.0 Female |
| Other I/O |
Input/Output |
|
1x RJ45 (LAN) |
| Expansion Slots |
1x SFP Slot |
| Input Video Format |
Input |
|
1x BNC (12G-SDI) Female |
|
1x HDMI 2.0 Female |
| Output Video Format |
Output |
|
1x BNC (12G-SDI) Female |
|
1x HDMI 2.0 Female |
| Embedded Audio |
Fiber/HDMI/SDI |
| Video Standard Compliance |
SMPTE: 259M/292M/296M/372M/424M/425M/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10 |
| Power |
- |
| Power I/O |
1x Barrel (12 VDC ) Input |
| PoE Support |
- |
| Power Consumption |
- |
| Environmental |
- |
| Operating Temperature |
5 to 40°C up to 90% Humidity |
| Storage Temperature |
-20 to 60°C |
| Operating Humidity |
- |
| General |
- |
| Dimensions |
125 x 115 x 24 mm |
| Weight |
365 g |
What's is in the box
- SCIENCE IMAGE FLOW 2 4K 12G-SDI/HDMI Up/Down/Cross Converter
- 12 VDC Power Supply (with International Plug Adapters)
- Limited 3-Year Manufacturer Warranty
