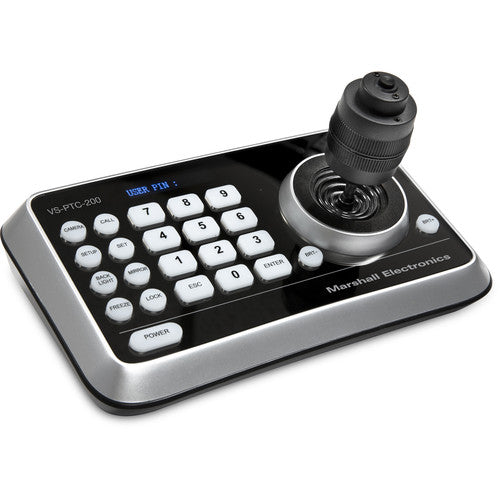

The Marshall VS-PTC-200 Compact PTZ Camera Controller offers precise control over Marshall CV620 Broadcast PTZ Cameras. Its intuitive 4D joystick enables simultaneous pan, tilt, zoom, and focus adjustments, while dedicated keypad buttons provide quick access to brightness, flip/mirror, backlight compensation, freeze-frame, and auto/manual focus settings. This controller combines advanced functionality with a compact design, ideal for professional broadcast environments requiring seamless camera operation.
Features
- Works with Marshall CV620 PTZ Cameras
- 4D Joystick
- Control up to 255 Cameras
- One-Touch Camera Controls
- VISCA and PELCO Protocols
- OLED Display and Backlit Keys
Specifications
| Number of Supported Cameras |
255 Channels |
| Supported Control Protocols |
Pelco-P |
|
RS-232 |
|
RS-422 |
|
VISCA |
| Control I/O |
1x Block 9-Pin |
| Other I/O |
- |
| Video I/O |
- |
| Controls |
Button |
|
Joystick |
| Presets |
128 |
| Display Size |
- |
| Native Resolution |
- |
| Touchscreen |
No |
| PoE Support |
No |
| Power Connectors |
<2 W |
| Input Power |
12 VDC |
| Operating Conditions |
32 to 104°F / 0 to 40°C up to 90% Humidity |
| Security Lock Support |
No |
| Dimensions |
7.9 x 4.7 x 4" / 200 x 120 x 103 mm |
| Weight |
0.5 kg |
What's in the box
- Marshall Electronics VS-PTC-200 Compact PTZ Camera Controller
- Limited 1-Year Manufacturer Warranty
