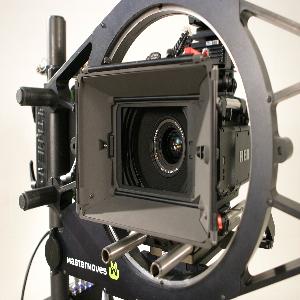

The Ulti-Head is the ultimate in heavy-load motion control heads designed for payload capacity, speed and precision. It is the perfect choice for live sports, studio environments and integrates seamlessly with a teleprompter. The Ulti-Head offers the best in class heavy duty camera support with a maximum payload of up 45kg (with side bars), making it the ideal choice for providing high speed, fluid and accurate motion for large sports box cameras & lenses.
Features
- Heavy payload: 45kg
- Slip Rings for unlimited pan rotation
- High level accuracy
- Lens control capability
Specifications
| Weight | 23kg |
| Camera payload | 45kg |
| Connections on slipring |
Multiread power, data, camera power, video on 2X BNC
|
| Optional sliprings |
allows for unlimited pan rotations without tanging of cables
|
| Connections on ‘Ultibox’ |
Lemo 2B connector (Pan), cable out to pan gearbox
|
|
Lemo 2B connector (Tilt), cable out to tilt gearbox
|
|
|
Lemo 2B connector (Prog), cable for a controller using serial RS232 and for updating firmware
|
|
|
Lemo 2B connector (Power), DC power input
|
|
|
Lemo 2B connector (Camera accessory) input/output connector, for control of serial
|
|
|
lenses and stepper motors
|
|
|
Lemo 2B connector (Data), data link in (up link) as an alternative to ethernet or
|
|
|
serial connection
|
|
|
Ethernet RJ45 for controlling the Ultibox with Multi head controller software
|
|
|
Lemo 2B connector (zoom and focus), connector for control of external servo lens
|
|
| control motors | |
|
Lemo 2B connector (Aux) 1&2, connectors for control of auxiliary servo motors
|
|
| Power requirements ut |
240 VAC 16A inp
|
|
36 – 48 VDC head voltage
|
|
| Temperature range |
0 – 55 Degrees Celsius
|
| Humidity tolerance |
0% to 85% relative humidity, non-condensing
|
| Axes speed (based on 48Vdc power applied) |
Pan: 0.001° – 180° per second, infinite movement, torque 47Nm
|
|
Tilt: 0.001° – 180° per second, infinite movement, torque 47Nm
|
|
|
Zoom: 0.001° – 60° per second
|
|
|
Focus: 0.001° – 60° per second
|
|
|
Aux 1%2 0.001° – 60° per second
|
|
| Accuracy of playback (angular resolution) | 0.5 arc-min |
| Multi Head Controller software |
MHC Available as a 32 bit or 64 bit installer and will need a licence key to activate
|
| Computer requirements | Windows 10 |
|
Intel i3 CPU (Intel i5 recommended)
|
|
|
4GB of RAM (8GB recommended)
|
|
|
Ethernet adapter
|
|
| Standard and Additional accessories for ULTIHEAD |
Pan bars (serial or ethernet)
|
| Handwheels | |
|
Zoom and focus controllers
|
|
|
Lens control motors
|
|
|
Mini MSA joystick panel
|
What's in the box
- Pan bars (serial or ethernet)
- Handwheels
- Zoom and focus controllers
- Lens control motors
- Mini MSA joystick panel
