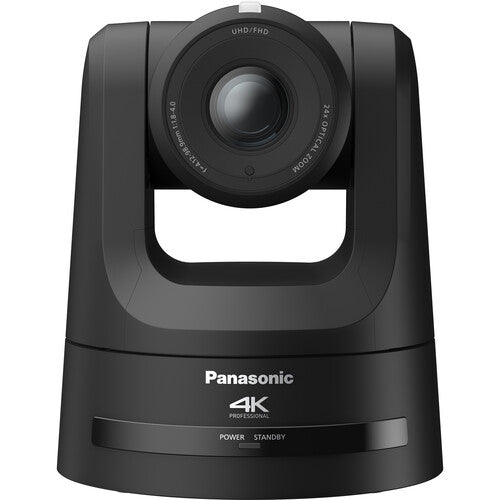

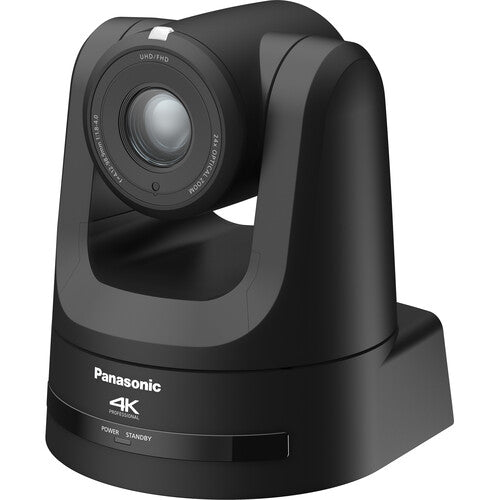

The Panasonic AW-UE100KEJ is a sophisticated 4K PTZ camera featuring a 1/2.5" 4K MOS sensor and 24x optical zoom. It offers versatile connectivity with 12G-SDI, HDMI, and NDI/NDI|HX protocols, enabling uncompressed and compressed video streaming over a single Ethernet cable with PoE++. Remote PTZ control and monitoring via a web browser simplify multi-location setups and reduce integration costs, making it ideal for professional live production and surveillance applications.
Features
- 1/2.5" 4K MOS Sensor
- HDMI, 12G-SDI, NDI & NDI|HX Output
- 24x Optical Zoom, Capture up to UHD 4K
- 3.3-74.1° Horizontal Field of View
- ±175° Pan Range
- -30 to 210° Tilt Range
- Optical & Electronic Image Stabilization
- Embedded Audio & 3.5mm Stereo Analog In
- MJPEG/H.264/H.265/NDI/NDI|HX Streaming
Specifications
| Image Sensor |
1/2.5"-Type MOS |
| Sensor Resolution |
Effective: 8.49 Megapixel |
| Shutter Speed |
1/10000 to 1/24 Second |
| Optical Zoom Ratio |
24x |
| External Recording Modes |
- |
| Broadcast Output |
NTSC/PAL |
| IP Streaming |
H.264/H.265/MJPEG via NDI/NDI|HX/RTMP/RTMPS/RTP/RTSP/SRT/TCP/UDP |
|
3840 x 2160 at 23.98p, 25p, 29.97p, 50p, 59.94p |
|
320 x 180 to 1920 x 1080 at 1p, 4p, 5.00p, 12.5p, 12p, 14.99p, 23.98p, 25p, 29.97p, 50p, 59.94p |
| Supported Control Protocols |
FreeD |
|
IP |
|
RS-422 |
| PoE Support |
PoE++ 802.3bt |
| Power Consumption |
Device: 3 A |
|
Power Supply: 3 A |
|
PoE: 42 to 57 VDC at 1.2 A |
| Mounting |
1x 1/4"-20 Female |
| Exposure Control |
|
| Presets |
ATW, AWB |
| Range |
2000 to 15,000K |
| Lens Focal Length |
4.1 to 98.9mm (35mm Equivalent: 25 to 600mm) |
| Field of View |
Horizontal: 74.1 to 3.3° |
|
Vertical: 46 to 1.9° |
|
Diagonal: 81.8 to 3.8° |
| Maximum Aperture |
f/1.8 to 4 |
| Pan/Tilt |
Pan: 350° (-175 to 175°) at 0.08 to 180°/s |
|
Tilt: 240° (-30 to 210°) at 0.08 to 180°/s |
| Interface |
|
| - Video I/O |
1 x BNC (12G-SDI) Output |
|
1 x BNC (3G-SDI) Output |
|
1 x HDMI 2.0 Output |
| -Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Line Input |
| -Other I/O |
1x BNC (Genlock) Input |
|
1x RJ45 (RS-422) Control Input |
|
1x RJ45 (LAN, NDI) Control (Shared with Power Input, Video Output) |
| Built-In Microphone |
No |
| Built-In Speaker |
No |
| Impact Resistance |
No |
| Environmental Resistance |
No |
| Security Lock Support |
Bolt-Down Base |
| Weight |
2.3 kg (Body Only) |
What's in the box
- Panasonic 4K NDI Pro 12G-SDI/HDMI PTZ Camera with 24x Optical Zoom (Black)
- Ceiling Mount
- AC to DC Adapter
- Limited 1-Year Warranty
