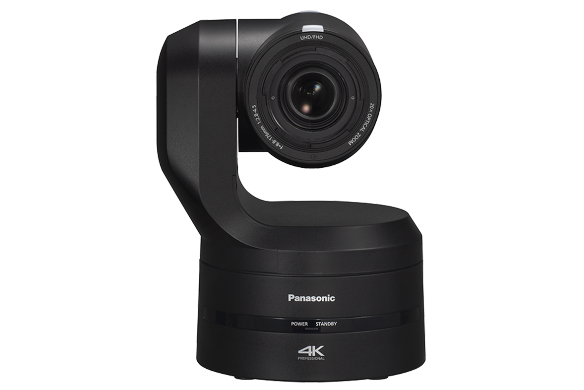

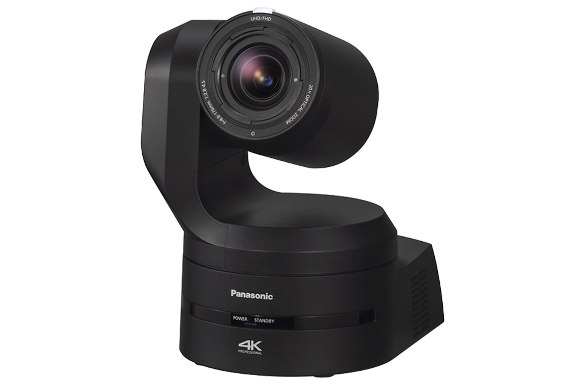

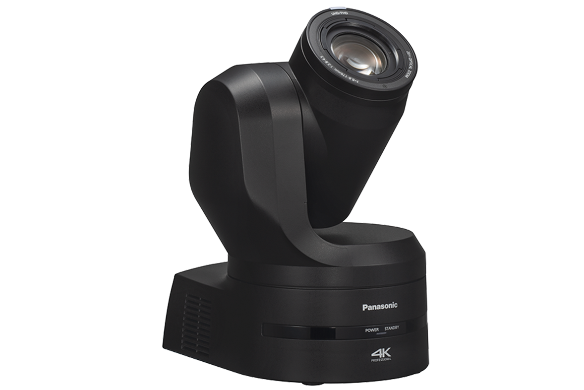

The Panasonic AW-UE160KEJ UHD 4K 20x PTZ Camera combines a cutting-edge 1” MOS sensor with exceptional sensitivity, delivering stunning image clarity even in low-light environments such as concert venues and churches. Its advanced optical low pass filter minimizes moiré effects, ensuring crisp visuals against LED walls—ideal for rental, staging, and worship settings. With a high-speed frame rate, it captures smooth slow-motion HD footage perfect for sports replays. Seamless robotic system integration enables fluid, broadcast-quality camera movements, elevating live productions with dynamic and engaging visuals.
Features
- Uncompromising shooting performance and operability
- Optical low-pass filter significantly reduces moiré
- Newly developed 4K Sensor offering superior sensitivity
- Significantly improved Autofocus with advanced technology
- SMPTE 2110 Support with purchase of additional software key
Specifications
| Image Sensor |
1-type (1") 4K MOSx1 |
|
Effective Pixels: Approx. 9,620,000 pixels |
| Sensor Resolution |
3840x2160, 1920x1080, 1280x720, 640x360 |
| Optical Zoom Ratio |
- |
| External Recording Modes |
- |
| Broadcast Output |
- |
| IP Streaming |
- |
| Supported Control Protocols |
- |
| PoE Support |
- |
| Power Consumption |
- |
| Mounting |
|
| Exposure Control |
|
| Presets |
|
| Range |
|
| Lens Focal Length |
|
| Field of View |
|
| Maximum Aperture |
|
| Minimum Focus Distance |
|
| Pan/Tilt |
- |
|
|

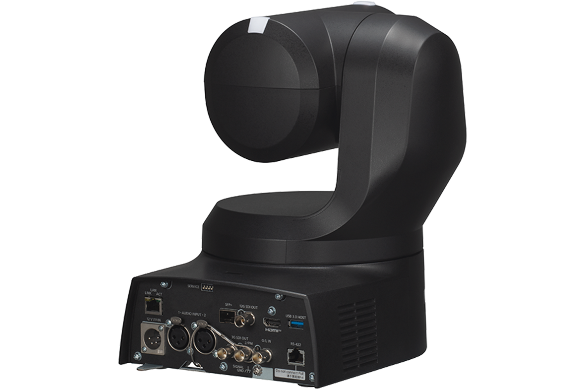

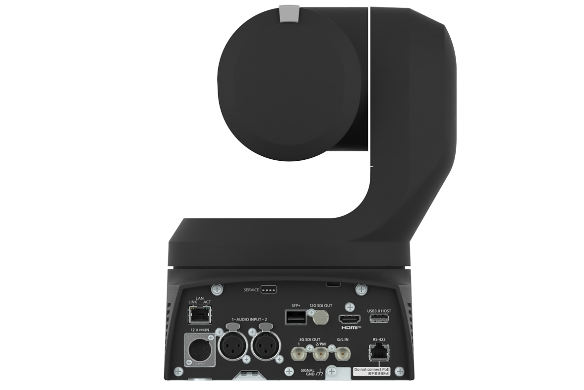

| Interface |
|
| - Video I/O |
- |
| -Audio I/O |
XLR(2ch) or MIC/LINE Input compatibles /HDMI /IP)AAC compatibility (compatible with IP only)XLR3 female balanced input 2chDuring MIC inputInput level: -50dBu or -60dBu/-40dBu(0 dB=1 V/Pa, 1 kHz)Phantom power compatible､Supply voltage:47 V±2 VInput impedance:Approx. 10kΩDuring LINE inputInput level :0 dBu ( or +4dBu/-20dBu)Input impedance:Approx. 10kΩInput volume variable range: -40 dB ~0dB~+20 dB(1 dBstep)Embedded audio output level:-12 dBFS/-18dBFS/-20dBFS Sampling frequency:48 kHz Quantization bit rate : 24 bit(SDI, HDMI), 16bit(IP) |
| -Other I/O |
- |
| Built-In Microphone |
- |
| Built-In Speaker |
|
| Impact Resistance |
- |
| Environmental Resistance |
- |
| Security Lock Support |
- |
| Weight |
- |
What's in the box
- AW-UE160 Camera Body
- Ceiling Mount Bracket
- Cable Cover
- Safety Wire with Screw
