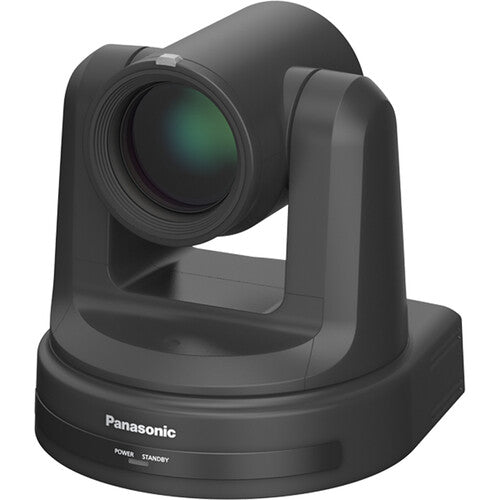

The Panasonic AW-UE20KEJ is a versatile 4K PTZ camera designed for professional environments such as conference rooms, houses of worship, and educational settings. Featuring a 1/2.8" MOS sensor and 12x optical zoom, it delivers crisp 4K30 video via HDMI and IP streaming, alongside 1080p 3G-SDI and USB webcam outputs. With mic/line audio input and serial control, it supports comprehensive connectivity. Remote PTZ control and monitoring through a web browser enhance operational flexibility, making it an ideal solution for high-quality video capture and streaming needs.
Features
- 1/2.8" HD MOS Sensor, 12x Optical Zoom
- Up to 4K30 HDMI/IP Streaming Output
- Up to 1080p 3G-SDI/USB Output
- ±170° Pan, -30 to 90° Tilt
- LAN, UVC, and Serial Control
- Mic/Line Stereo Audio Input
- PoE+ Compatible
Specifications
| Image Sensor |
1/2.8"-Type MOS |
| Sensor Resolution |
Effective: 8.46 Megapixel |
| Shutter Speed |
1/16000 to 1 Second |
| Optical Zoom Ratio |
12x |
| External Recording Modes |
- |
| Broadcast Output |
NTSC/PAL |
| IP Streaming |
H.264/H.265/MJPEG via RTMP/RTMPS/RTP/RTSP/TCP/UDP |
|
3840 x 2160 at 5.00p, 10p, 14.99p, 25p, 29.97p |
|
640 x 360 to 1920 x 1080 at 5.00p, 10p, 14.99p, 25p, 29.97p, 50p, 59.94p |
| Supported Control Protocols |
IP |
|
IR |
|
RS-232 |
|
RS-422 |
| PoE Support |
PoE+ 802.3at |
| Power Consumption |
Device: 1.3 A |
|
PoE: 0.4 A |
| Mounting |
4x M4 Female for Bracket/Ceiling |
| Exposure Control |
|
| Presets |
ATW, Auto |
| Range |
- |
| Lens Focal Length |
|
| Field of View |
3.9 to 46.8mm |
| Maximum Aperture |
f/1.6 to 2.8 |
| Pan/Tilt |
Pan: 340° (-170 to 170°) at 0.1 to 100°/s |
|
Tilt: 120° (-30 to 90°) at 0.1 to 100°/s |
| Interface |
|
| - Video I/O |
1 x BNC (3G-SDI) Output |
|
1 x HDMI (Unspecified Signal) Output |
|
1 x USB-C 3.0 / 3.1/3.2 Gen 1 Output |
|
1 x RJ45 (NDI) Output |
| -Audio I/O |
3.5 mm TRS Stereo Mic/Line Input |
| -Other I/O |
1x RJ45 (LAN) Control Input (Shared with Power Input) |
|
1x Mini-DIN 8-Pin (RS-232) Control Input |
|
1x Mini-DIN 8-Pin (RS-232) Control Output |
|
1x RJ45 (RS-422) Control Output |
| Built-In Microphone |
No |
| Built-In Speaker |
No |
| Impact Resistance |
No |
| Environmental Resistance |
No |
| Security Lock Support |
Bolt-Down Base |
| Weight |
1.9 kg (Body Only) |
What's in the box
- Panasonic AW-UE20 4K 3G-SDI/HDMI/IP/USB PTZ Camera with 12x Optical Zoom (Black)
- Power Adapter
- Limited 1-Year Manufacturer Warranty
