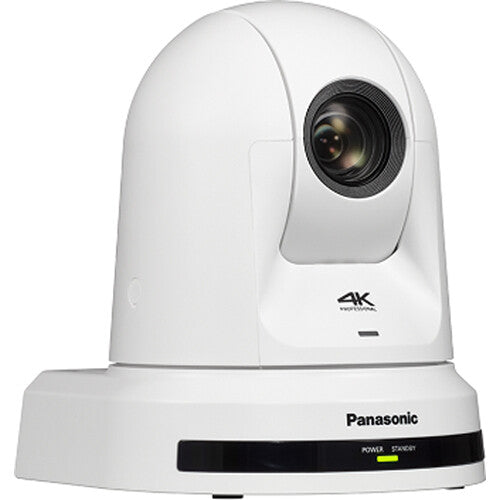

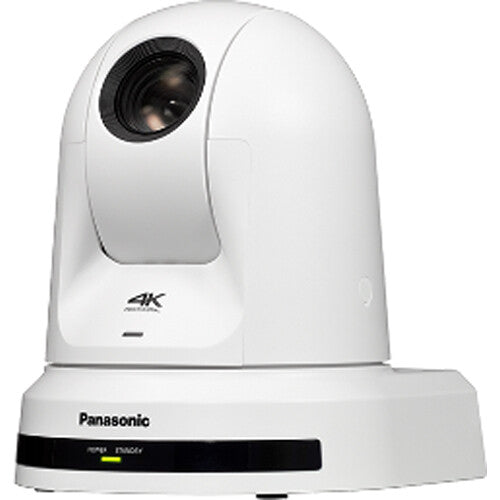

Elevate your video production with the Panasonic AW-UE40KEJ, a sophisticated 4K30 HDMI PTZ camera delivering UHD 4K30 quality via HDMI 1.4. Equipped with a large 1/2.5" MOS sensor and 24x optical zoom, it captures wide 74.1° views with precision. Ideal for conference rooms and classrooms, it supports IP live streaming up to 1080p and functions as a webcam through its USB-C port. Features include built-in speaker auto-tracking, PoE+ for streamlined single-cable operation, and versatile audio input options, all managed through a user-friendly web interface compatible across major platforms.
Features
- 1/2.5" 4K MOS Sensor
- Up to UHD 4K30 & HD Simultaneous Out
- HDMI 1.4, USB & IP Video Output
- Built-In Auto-Tracking
- 24x Optical, 28x UHD & 36x HD iZoom
- Wide 74.1° Horizontal Angle of View
- PoE+ Support, IP, USB & RS-422 Control
- Stream 1080p to Platforms via H.264/265
- Stereo Mini-Jack Audio Mic/Line Input
Specifications
| Image Sensor |
1/2.5"-Type MOS |
| Sensor Resolution |
Effective: 8.49 Megapixel |
| Shutter Speed |
1/10000 to 1/25 Second |
| Optical Zoom Ratio |
24x |
| External Recording Modes |
- |
| Broadcast Output |
NTSC/PAL |
| IP Streaming |
H.264/H.265/MJPEG via NDI|HX/RTMP/RTMPS/RTP/RTSP/SRT/TCP/UDP |
|
320 x 180 to 1920 x 1080 |
| Supported Control Protocols |
IP |
|
NDI |
|
RS-422 |
| PoE Support |
PoE+ 802.3at |
| Power Consumption |
|
|
Power Supply: 10.8 to 13.2 VDC at 1.8 A |
| Mounting |
PoE: 42 to 57 VDC at 0.6 A |
| Exposure Control |
|
| Presets |
100 |
| Range |
2000 to 15,000K |
| Lens Focal Length |
4.1 to 98.9mm (35mm Equivalent: 25 to 600mm) |
| Field of View |
Horizontal: 74.1 to 3.3° |
|
Vertical: 46 to 1.9° |
|
Diagonal: 81.8 to 3.8° |
| Maximum Aperture |
f/1.8 to 4 |
| Pan/Tilt |
Pan: 350° (-175 to 175°) at 0.08 to 180°/s |
|
Tilt: 120° (-30 to 90°) at 0.08 to 180°/s |

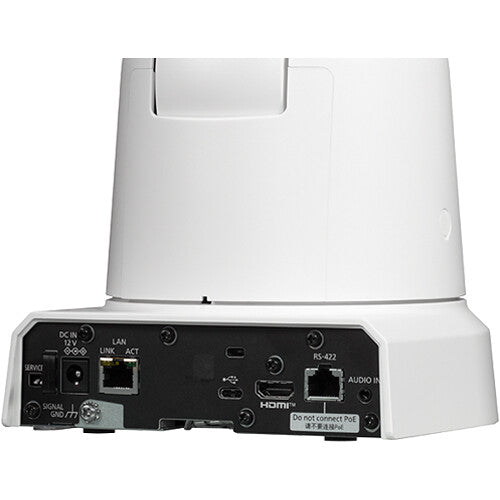

| Interface |
|
| - Video I/O |
1 x HDMI 1.4 Output |
|
1 x USB-C 3.0 / 3.1/3.2 Gen 1 Output |
| -Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input |
| -Other I/O |
1x RJ45 (LAN) Control Input |
|
1x RJ45 (RS-422) Control Input |
| Built-In Microphone |
No |
| Built-In Speaker |
No |
| Impact Resistance |
- |
| Environmental Resistance |
- |
| Security Lock Support |
- |
| Weight |
1.8 kg (Body Only) |
What's in the box
- Panasonic UE40 4K30 HDMI PTZ Camera with 24x Optical Zoom (White)
- Power Supply
- Limited 1-Year Manufacturer Warranty
