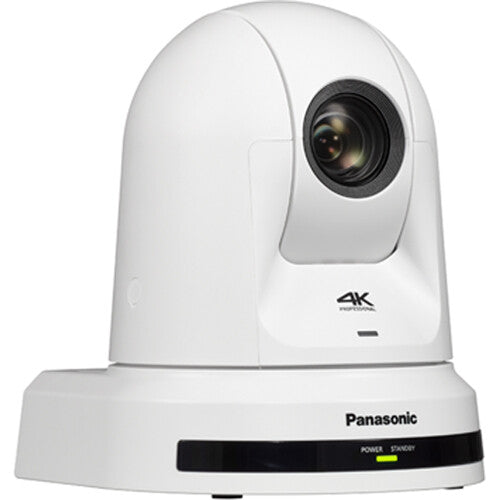

Elevate your video production with the Panasonic AW-UE50KEJ, a sophisticated 4K30 PTZ camera delivering UHD quality via HDMI 1.4 and smooth 1080p60 over SDI. Its versatile IP streaming and USB Type-C webcam functionality adapt seamlessly to conference rooms and classrooms. Featuring a large 1/2.5" MOS sensor, 24x optical zoom, and a wide 74.1° field of view, this camera ensures detailed, expansive shots. PoE+ support enables streamlined single-cable operation, while embedded audio and stereo mini-jack input enhance your audio integration. The intuitive web interface works across Windows, macOS, Android, and iOS for effortless control.
Features
- 1/2.5" 4K MOS Sensor
- Up to UHD 4K30 & HD Simultaneous Out
- HDMI 1.4, SDI, USB & IP Video Output
- 24x Optical, 28x UHD & 36x HD iZoom
- Wide 74.1° Horizontal Angle of View
- PoE+ Support, IP, USB & RS-422 Control
- Stream 1080p to Platforms via H.264/265
- Stereo Mini-Jack Audio Mic/Line Input
Specifications
| Image Sensor |
1/2.5"-Type MOS |
| Sensor Resolution |
-
|
| Shutter Speed |
1/10000 to 1/25 Second |
| Optical Zoom Ratio |
24X |
| External Recording Modes |
- |
| Broadcast Output |
NTSC/PAL |
| IP Streaming |
H.264/H.265/MJPEG via NDI|HX/RTMP/RTMPS/RTP/RTSP/SRT/TCP/UDP |
|
320 x 180 to 1920 x 1080 |
| Supported Control Protocols |
IP |
|
NDI |
|
RS-422 |
| PoE Support |
PoE+ 802.3at |
| Power Consumption |
Power Supply: 10.8 to 13.2 VDC at 1.8 A |
|
PoE: 42 to 57 VDC at 0.6 A |
| Mounting |
1x M4 Female |
| Exposure Control |
|
| Presets |
- |
| Range |
- |
| Lens Focal Length |
4.1 to 98.9mm (35mm Equivalent: 25 to 600mm) |
| Field of View |
Horizontal: 74.1 to 3.3°
Vertical: 46 to 1.9°
Diagonal: 81.8 to 3.8° |
| Maximum Aperture |
f/1.8 to 4 |
| Pan/Tilt |
Pan: 350° (-175 to 175°) at 0.08 to 180°/s |
|
Tilt: 120° (-30 to 90°) at 0.08 to 180°/s |
| Interface |
|
| - Video I/O |
1 x HDMI 1.4 Output |
|
1 x BNC (3G-SDI) Output |
|
1 x USB-C 3.0 / 3.1/3.2 Gen 1 Output |
| -Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input |
| -Other I/O |
1x RJ45 (LAN) Control Input |
|
1x RJ45 (RS-422) Input |
| Built-In Microphone |
- |
| Built-In Speaker |
- |
| Impact Resistance |
No |
| Environmental Resistance |
No |
| Security Lock Support |
- |
| Weight |
1.8 kg (Body Only) |
What's in the box
- Panasonic UE50 4K30 SDI/HDMI PTZ Camera with 24x Optical Zoom (White)
- Power Supply
- Limited 1-Year Manufacturer Warranty
