Description

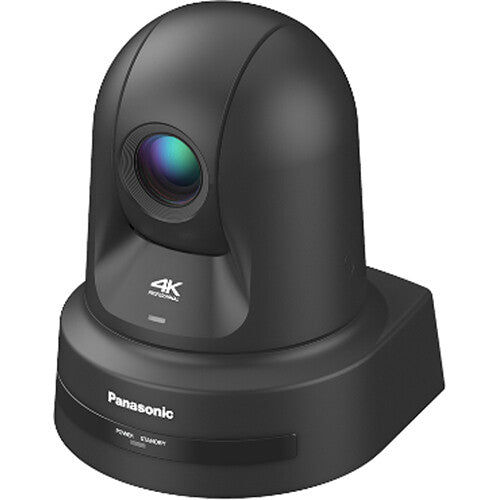

Elevate your video production with the Panasonic AW-UE80KEJ, a sophisticated 4K60 PTZ camera delivering UHD quality via HDMI 1.4 and 1080p60 over SDI. Equipped with a large 1/2.5" MOS sensor and 24x optical zoom, it captures expansive 74.1° wide-angle shots with precision. Its full NDI license enables seamless integration into broadcast environments, streaming high-quality, low-latency video up to 1080p60 using NDI|HX2. Designed for versatility, it supports IP live streaming and PoE+ for streamlined single-cable operation, making it ideal for professional settings like conference rooms and classrooms.
Features
- 1/2.5" 4K MOS Sensor
- Up to UHD 4K60 & HD Output
- HDMI, SDI, NDI|HX2 & IP Video Output
- 24x Optical, 28x UHD & 36x HD iZoom
- Wide 74.1° Horizontal Angle of View
- PoE+ Support, IP, USB & RS-422 Control
- Stream 1080p to Platforms via H.264/265
- Stereo Mini-Jack Audio Mic/Line Input
Specifications
| Image Sensor | 1/2.5"-Type MOS |
| Sensor Resolution | Effective: 8.49 Megapixel |
| Shutter Speed | 1/10000 to 1/25 Second |
| Optical Zoom Ratio | 24x |
| External Recording Modes | - |
| Broadcast Output | NTSC/PAL |
| IP Streaming | H.264/H.265/MJPEG via NDI/NDI|HX2/RTMP/RTMPS/RTP/RTSP/SRT/TCP/UDP |
| 1920 x 1080 at 1p, 4p, 5.00p, 12.5p, 12p, 14.99p, 23.98p, 25p, 29.97p, 50p, 59.94p | |
| 1280 x 720 at 1p, 4p, 5.00p, 12.5p, 12p, 14.99p, 23.98p, 25p, 29.97p, 50p, 59.94p | |
| 640 x 360 at 1p, 4p, 5.00p, 12.5p, 12p, 14.99p, 23.98p, 25p, 29.97p, 50p, 59.94p | |
| 320 x 180 at 1p, 4p, 5.00p, 12.5p, 12p, 14.99p, 23.98p, 25p, 29.97p, 50p, 59.94p | |
| Supported Control Protocols | FreeD |
| IP | |
| IR | |
| NDI | |
| RS-422 | |
| PoE Support | PoE++ 802.3bt |
| Power Consumption | Power Supply: 10.8 to 13.2 VDC at 1.8 A |
| PoE: 42 to 57 VDC at 0.6 A | |
| Mounting | 1x 1/4"-20 Female |
| 1x M4 Female | |
| Exposure Control | |
| Presets | ATW, AWB |
| Range | 2000 to 15,000K |
| Lens Focal Length | 4.1 to 98.9mm (35mm Equivalent: 25 to 600mm) |
| Field of View | Horizontal: 74.1 to 3.3° |
| Vertical: 46 to 1.9° | |
| Diagonal: 81.8 to 3.8° | |
| Maximum Aperture | f/1.8 to 4 |
| Pan/Tilt | Pan: 350° (-175 to 175°) at 0.08 to 180°/s |
| Tilt: 120° (-30 to 90°) at 0.08 to 180°/s | |
| Interface | |
| - Video I/O | 1 x HDMI 2.0 Output |
| 1 x BNC (3G-SDI) Output | |
| 1 x RJ45 (NDI) Output | |
| -Audio I/O | 3.5 mm TRS Stereo Mic/Line Input |
| -Other I/O | 1x RJ45 (LAN) Control Input |
| 1x RJ45 (RS-422) Control Input | |
| Built-In Microphone | No |
| Built-In Speaker | No |
| Impact Resistance | - |
| Environmental Resistance | - |
| Security Lock Support | - |
| Weight | 2 kg (Body Only) |
What's in the box
- Panasonic UE80 4K60 SDI/HDMI/NDI PTZ Camera with 24x Optical Zoom (Black)
- Power Supply
- Limited 1-Year Manufacturer Warranty
