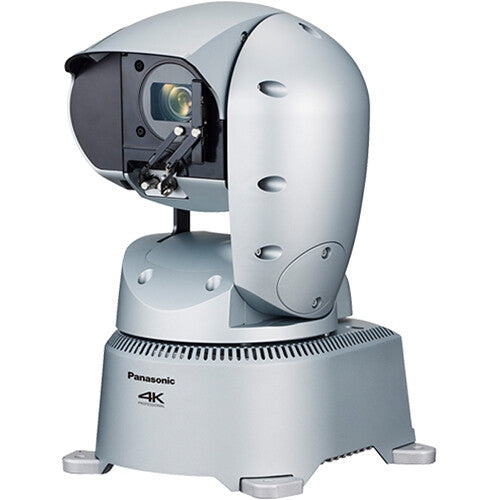

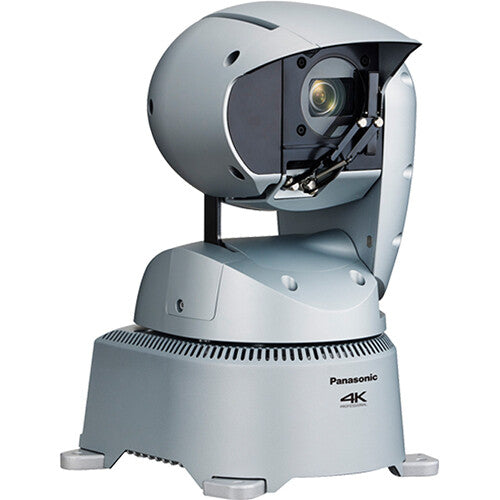

Enhance your outdoor security, event coverage, or broadcast setup with the Panasonic AW-UR100GJ UHD 4K Outdoor PTZ Camera. Featuring a 1/2.5" UHD 4K MOS sensor, it delivers crisp UHD 4K60 video. Built to endure, its IP65-rated, salt-resistant body includes a wiper, heater, and defroster for reliable performance in harsh conditions. The 24x optical zoom with three stabilization modes ensures steady, detailed shots even in windy environments, complemented by a 10x digital zoom for extended reach. Multiple outputs and IP protocol support provide versatile connectivity for professional applications.
Features
- 1/2.5" MOS Image Sensor
- Up to UHD 4K at 60 fps
- 24x Optical Zoom, 10x Digital Zoom
- RS-422 and IP Control, Genlock
- IP65 Rated / Wiper / Heater / Defroster
- 74.1 to 3.3° Horizontal Viewing Angle
- 12G/3G-SDI and SFP+ Outputs
- D-Sub 9-Pin Audio Input
- NDI, SRT, and RTMP IP Protocols
- Three Image Stabilization Modes
Specifications
| Image Sensor |
1/2.5"-Type CMOS |
| Sensor Resolution |
Actual: 8.49 Megapixel (3864 x 2196) |
|
Effective: 8.29 Megapixel |
| Optical Zoom Ratio |
1/10000 to 1/24 Second |
| External Recording Modes |
- |
| Broadcast Output |
NTSC/PAL |
| IP Streaming |
H.264/H.265 via NDI/RTMP/SRT |
|
1920 x 1080 to 3840 x 2160 at 23.98p, 24p, 25p, 29.97p, 50p, 59.94p |
|
1280 x 720 at 50p, 59.94p |
|
H.264/H.265 via NDI|HX2 |
|
1280 x 720 to 1920 x 1080 at 5.00p, 12.5p, 15p, 25p, 30p, 50p, 60p |
| Supported Control Protocols |
FreeD |
|
IP |
|
NDI |
|
RS-422 |
| PoE Support |
PoE++ 802.3bt |
| Power Consumption |
PoE: 42 to 57 VDC |
| Mounting |
- |
| Exposure Control |
|
| Presets |
ATW, Multi Auto WB |
| Range |
2000 to 15,000K |
| Lens Focal Length |
|
| Field of View |
4.12 to 98.9mm (35mm Equivalent: 25 to 600mm) |
| Maximum Aperture |
f/1.8 to 4 |
| Minimum Focus Distance |
120 cm |
| Pan/Tilt |
Pan: 350° (-175 to 175°) at 0.08 to 60°/s |
|
Tilt: 240° (-30 to 210°) at 0.08 to 60°/s |

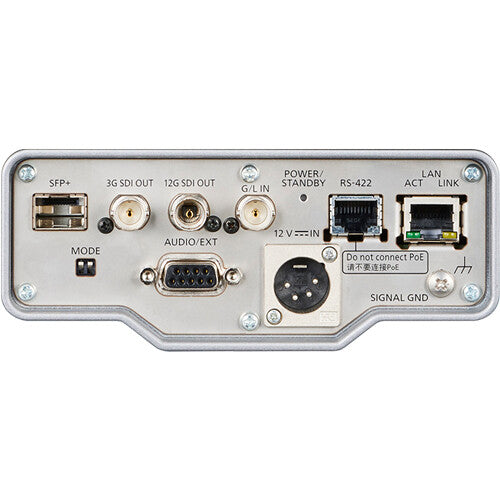

| Interface |
|
| - Video I/O |
1 x BNC (12G-SDI) Output |
|
1 x BNC (3G-SDI) Output |
| -Audio I/O |
1x D-Sub 9-Pin Mic/Line (+48 V Phantom Power) Input |
| -Other I/O |
1x BNC (Genlock) Input |
|
1x RJ45 (RS-422) Control |
|
1x RJ45 (LAN) Control (Shared with Power Input) |
| Built-In Microphone |
- |
| Built-In Speaker |
No |
| Impact Resistance |
Vibration-Resistant (Unrated) |
| Environmental Resistance |
Corrosion/Dust/Salt/Weather/Water-Resistant (IP65) |
| Security Lock Support |
Bolt-Down Base |
| Weight |
9 kg (Body Only) |
What's in the box
- Panasonic AW-UR100 UHD 4K Outdoor SDI/NDI PTZ Camera with 24x Optical Zoom
- Limited 1-Year Manufacturer Warranty
