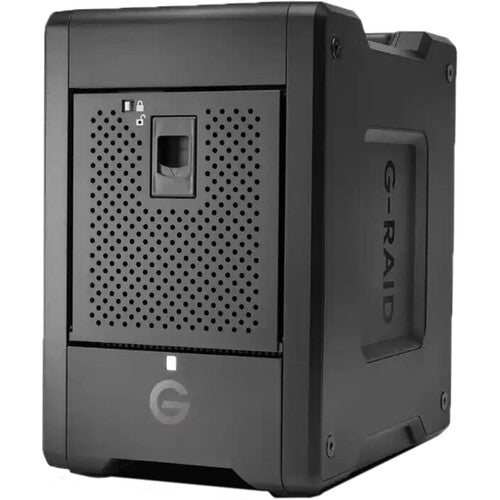

The SanDisk Professional G-RAID Shuttle 4 delivers enterprise-grade storage performance with 80TB capacity across four 3.5" drive bays, each housing a 20TB Ultrastar drive. Preconfigured in RAID 5 for data redundancy, it flexibly supports RAID 0, 1, 10, and JBOD modes to match your workflow requirements. Thunderbolt 3 connectivity achieves sequential read speeds up to 640 MB/s and write speeds to 800 MB/s, with dual ports enabling daisy-chain configuration of up to five units and 85W power delivery. Compatible with 10 Gb/s USB 3.2 Gen 2, this array arrives pre-formatted for macOS 11 and later, streamlining deployment for creative professionals and organizations demanding reliable, high-speed data management.
Features
- 4 x 20TB 7200 rpm 3.5" HDDs

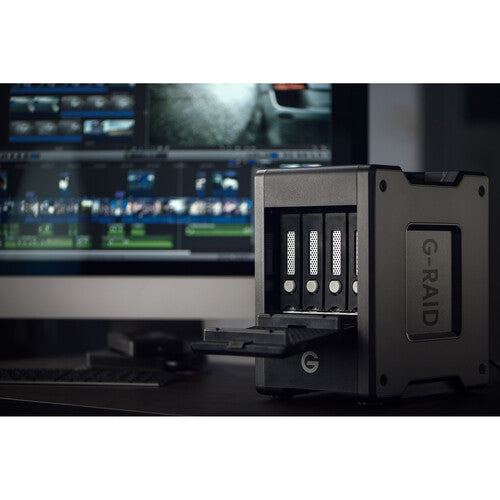

- 4 x SATA III 3.5" Drive Bays

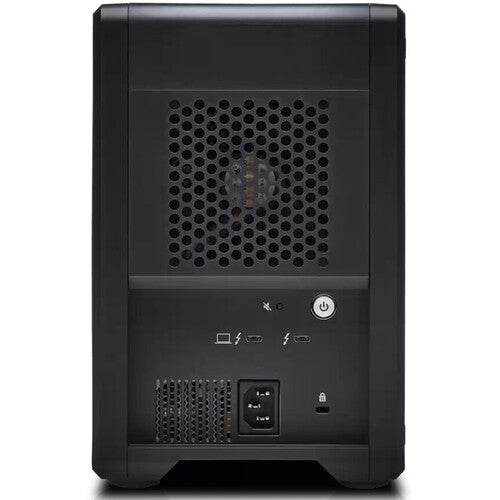

- Dual 40 Gb/s Thunderbolt 3 Ports
- Supports RAID 0, 1, 5, and 10
- Pre-Configured in RAID 5
- Hardware RAID Controller
- Read Speeds up to 640 MB/s (RAID 5)
- Write Speeds up to 800 MB/s (RAID 5)
- Preformatted for macOS 11 and Later
- Windows 10+ Compatible via Reformat
Specifications
| Storage Capacity |
80 TB |
| Transfer Rates |
640 MB/s (Read in RAID 5) |
|
800 MB/s (Write in RAID 5) |
| Number of Bays |
4x 3.5" SATA III |
| Inputs/Outputs |
2x USB-C Thunderbolt 3 (40 Gb/s) |
| Form Factor |
- |
| OS Compatibility |
macOS 11 or Later |
|
Windows 10 or Later |
| Default OS Support |
macOS |
| Encryption |
No |
| Input Power |
100 to 240 VAC, 50 / 60 Hz at 2 to 4 A |
| Color |
Black |
| Cooling |
1X Fan |
| Dimensions |
266.95 x 247.9 x 173.99 mm |
| Weight |
7.5 kg |
What's in the box
- SanDisk Professional G-RAID Shuttle 4 80TB 4-Bay Thunderbolt 3 RAID Array (4 x 20TB)
- Thunderbolt 3 Cable
- IEC Power Cable
- 4 x Removable Disk Module
- Limited 5-Year Manufacturer Warranty
