Description

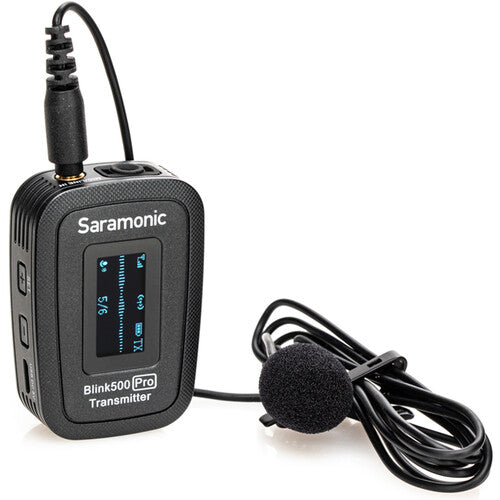

Combining the sleek, compact design and user-friendly interface of the original Blink 500 with premium features like vibrant OLED displays, versatile mono/stereo output options, 60% more battery life, and twice the coverage range, the sleek black Saramonic Blink 500 Pro B1 wireless microphone system offers a professional-level, comprehensive solution for recording a single subject to your camera, camcorder, smartphone, or other device.
Features
- For Videographers, Journalists, Vloggers
- Omni Lavalier Mic & Built-In Omni Mic
- Ultracompact Clip-On Pro Transmitter
- Ultracompact Dual-Channel Pro Receiver
- Separate 3.5mm Main & Headphone Outputs
- Easy to Use, Informative OLED Screens
- Mute Function, Mono/Stereo Output Mode
- Internal 8-Hour Batteries, Charging Case
- 3.5mm Cables for Camera & Mobile Device
- 18 Systems at Once Max, up to 328' Range
Specifications
| Wireless Technology | Digital 2.4 GHz |
| Number of RF Channel Frequencies | 18 |
| Included Transmitters |
1x Clip-On with Microphone
|
| Diversity | Non-Diversity |
| RF Frequency Band |
2400 to 2483.5 MHz
|
| RF Bandwidth | Up to 83.5 MHz |
| RF Channel Scanning | Auto-Scan |
| Max Operating Range |
100 m (Line of Sight)
|
| Max Transmitters per Band | 18 |
| Built-In Recorder | No |
| Timecode Support | No |
| Mobile App Compatible | No |
| Bluetooth |
Not Specified by Manufacturer
|
| Sample Rate/Resolution |
44.1 kHz / 24-Bit
|
| Latency | 12 ms |
| Encryption | No |
| Modulation | GFSK |
| Receiver Type |
Camera-Mount / Beltpack
|
| Mounting Options |
Belt Clip, Shoe-Mount (with Included Hardware)
|
| Antenna |
1x 1/4 Wave Internal
|
| Number of Audio Channels | 2 |
| Audio I/O |
1x 1/8" / 3.5 mm TRS Female Unbalanced Mic Output
1x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output |
| Audio Output Level | -60 to -20 dBV |
| Phantom Power Protection | No |
| Network I/O | No |
| Word Clock I/O | No |
| USB/Lightning Connectivity |
1x Micro-USB Female (Bus Power, Charging)
|
| Standalone Audio Interface Capable | No |
| Power Requirements |
Battery or Bus Power (USB)
|
| Battery Type |
1x Built-In Rechargeable (Included, Not Replaceable)
|
| Battery Charging Time | 3 Hours |
| Approx. Battery Life | 8 Hours |
| DC Input Power | 5 VDC at 1.5A |
| Display & Indicators |
1x OLED (Battery Status, Data Transmission, Mute, Power, Recharging, Sync, Transmitter Battery Status)
|
| Operating Temperature | 0 to 50°C |
| Storage Temperature | -20 to 55°C |
| Dimensions |
5.6 x 3.8 x 2.9 cm
|
| Weight | 32 g |
| Transmitter Type |
Clip-On with Microphone
|
| RF Output Power | 10 mW |
| Audio I/O |
1x 1/8" / 3.5 mm TRS Female Unbalanced Input
|
| Pad | No |
| Muting | Mute Switch |
| Audio Input Level |
-42 to -30 dBV (at 0 dB Gain)
|
| Auto-Level Control | No |
| Signal Processing | No |
| Sync Method | IR |
| Antenna |
1x 1/4 Wave Internal
|
| Power Requirements |
Battery or Bus Power (USB)
|
| Battery Type |
1x Built-In Rechargeable (Included, Not Replaceable)
|
| Battery Charging Time | 3 Hours |
| Approx. Battery Life | 8 Hours |
| USB/Lightning I/O |
1x Micro-USB (Bus Power, Charging)
|
| Display & Indicators |
1x OLED (Audio Level, Battery Status, Mute, Power, Signal Strength)
|
| Operating Temperature | 0 to 50°C |
| Storage Temperature | -20 to 55°C |
| Dimensions |
5.7 x 3.8 x 2.6 cm
|
| Weight | 32 g |
| Microphone Type | Lavalier |
| Color | Black |
| Sound Field | Mono |
| Operating Principle |
Pressure Operated
|
| Capsule |
Electret Condenser
|
| Polar Pattern | Omnidirectional |
| Maximum SPL | 110 dB SPL |
| THD | < 1% |
| Impedance | 2.2 Kilohms |
| Sensitivity | -39 dB |
| Output Connector |
1x 1/8" / 3.5 mm TRS Male Unbalanced
|
| Cable Length | 4.1' / 1.2 m |
| Operating Voltage | 1 to 10 V |
| Operating Current Consumption | 500 µA |
| Second Microphone Type |
Built-In (Transmitter)
|
| Color | Black |
| Sound Field | Mono |
| Operating Principle |
Pressure Operated
|
| Capsule |
Electret Condenser
|
| Polar Pattern | Omnidirectional |
| Frequency Range | 50 Hz to 18 kHz |
| Maximum SPL | 120 dB SPL |
| Sensitivity | -39 dB |
| Recharge Time | 4 Hour |
| Capacity | 2000 mAh |
| Charging Interface | USB-C |
| DC Input Power | 5 VDC at 1.5 A |
| Dimensions |
165.8 x 102.9 x 39.7 mm
|
| Weight | 268 g |
What's in the box
- Saramonic Blink 500 Pro B1 Digital Camera-Mount Wireless Omni Lavalier Microphone System (2.4 GHz, Black)
- Blink 500 Pro TX Clip-On Digital Bodypack Wireless Transmitter with Built-In Omni Microphone (2.4 GHz, Black)
- Blink 500 Pro RX Dual-Channel Camera-Mount Digital Wireless Receiver (2.4 GHz, Black)
- Blink 500 Pro B1 Charging Case (Black)
- SR-M1 Omnidirectional Lavalier Microphone (Black)
- Alligator-Style Lavalier Mic Clip (Black)
- Foam Windscreen (Black)
- Furry High-Wind, Press-On Windscreen for Blink 500 Pro TX Transmitter
- Zipper Bag
- 1' Gold-Plated 3.5mm TRS Cable for Cameras
- 1' Gold-Plated 3.5mm TRS to TRRS Cable for Mobile Devices
- 1' Gold-Plated USB Type-C to USB Type-A Charging Cable
- 1' Gold-Plated Micro-USB to USB Type-A Charging Cable
- Limited 1-Year Manufacturer Warranty
