Description
At the heart of EW-DP is a compact digital receiver that provides an intuitive user experience for all. Bluetooth synchronization and system control via our Smart Assist app help you save time and energy on set. A front facing OLED display allows for easy menu navigation and Smart Notifications help to troubleshoot your system when you encounter a challenge. Magnetic and stackable mounting configurations seamlessly integrate the receiver into your camera build while multiple powering options are ready to tackle long days on location.
Features
- Fully digital UHF wireless microphone system
- Integrated Bluetooth for synchronization and control
- Smart Notifications for troubleshooting and system guidance
- Intelligent battery management provides operating time (hours:minutes)
- Extended battery life: up to 12h on transmitter, 7h on receiver
- Magnetically stackable components for versatile mounting
- Industry leading 134 dB input dynamic range for distortion free transmission
- Up to 56 MHz bandwidth for flexibility in any RF environment
- Exceptionally low latency (1.9 ms)
- External charging and powering via USB-C (receiver only)
- Smart Assist app for monitor & control
- Optional plug-on transmitter features XLR & 3.5 mm inputs, +48V & recording via microSD (ENG Set or component only)
Specifications
|
Audio Link Frequency Ranges
|
|
| Bluetooth® Low Energy (BLE) Frequency Range |
2402 – 2480 Mhz
|
| Audio Frequency Response |
20 Hz – 20 @ 3 Dbfs
|
| Audio THD |
≤ -60 Db For 1 Khz @ -3 Dbfs Input Level
|
| Dynamic Range | 134 Db |
| System Latency | 1.9 Ms |
| Operating Temperature |
-10 °C – +55 °C (14 °F – 131 °F)
|
| Relative Air Humidity |
5 – 95 % (Non-Condensing)
|
| EW-DP EK | |
| Input Voltage | ~ 1.8 – 4.35 V |
| Input Current |
Typ. < 250 Ma / Max. < 400 Ma (BA 70)
|
|
Typ. < 400 Ma / Max. < 750 Ma (2x AA Batteries)
|
|
|
< 300 Ma@5 V (USB-C Standalone)
|
|
| 2x AA Batteries 1.5V Or BA70 Rechargeable Upply Battery Pack Or USB-C PD Power S (Max.): | 5V / 1500ma |
| 9V / 900ma | |
| 12V / 700ma | |
| Transmit Power (Radiated) |
BLE: Max. 10 Mw EIRP
|
| Audio Output Power |
< 2 Dbv Max. (High Level) / < 4dbu Max (High Level)
|
| Headphone Output |
< 50 Mw Into 16 Ohms
|
| Dimensions |
86 X 67 X 28 Mm (3.39″ X 2.64″ X 1.1″)
|
| Weight (Without Antennas And Power Supply) |
Approx. 140g (0.31 Lbs)
|
|
EW-D SK (Bodypack Transmitter)
|
|
| Input Voltage | 2.0 – 4.35 V |
| Input Current | < 300 Ma |
| Power Supply |
2 AA Batteries 1.5 V (Alkali Manganese) Or BA 70 Rechargeable Battery Pack
|
| Occupied Bandwidth | 200 Khz |
| Transmit Power (Radiated) |
Audio Link: 10 Mw ERP (Range Y1-3: 12 Mw ERP)
|
|
BLE: Max. 10 Mw EIRP
|
What's in the box
- Sennheiser EW-DP ME 2 SET Camera-Mount Digital Wireless Omni Lavalier Mic System (Q1-6: 470 to 526 MHz)

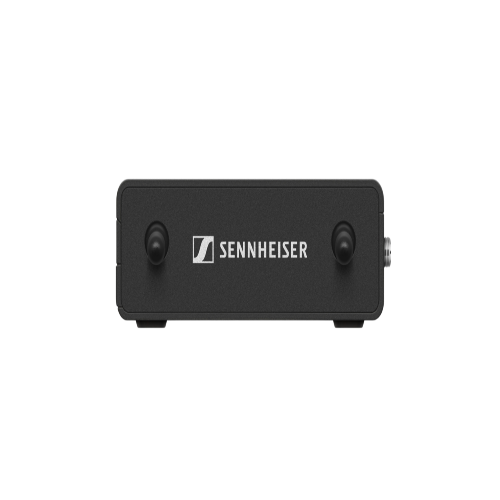

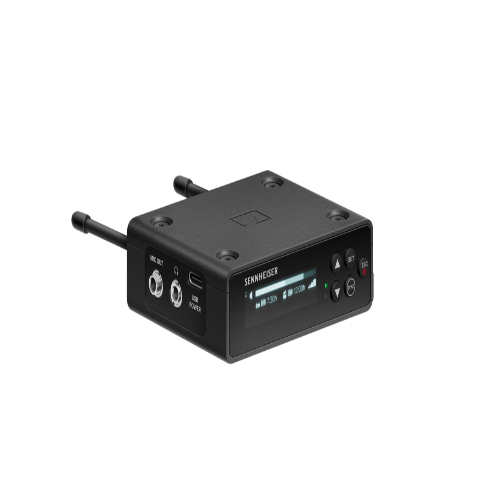

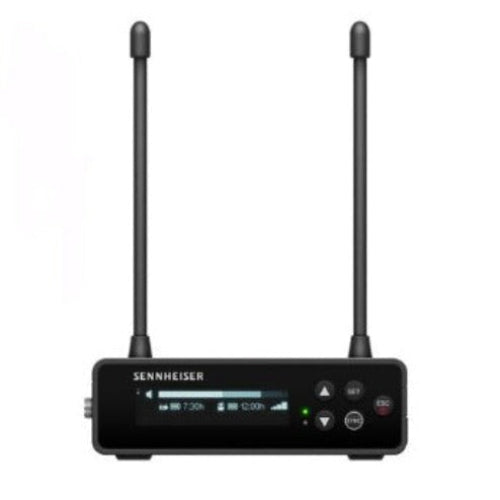

- Sennheiser EW-DP EK Camera-Mount Digital Wireless Receiver (Q1-6: 470 to 526 MHz)
- Sennheiser EW-D SK Digital Wireless Bodypack Transmitter (Q1-6: 470 to 526 MHz)
- Sennheiser ME 2 Omnidirectional Lavalier Microphone with Locking 3.5mm Connector (Black)
- TRS Locking 3.5mm TRS to 3.5mm TRS Coiled Cable
- Sennheiser CL 35-XLR Right-Angle Locking 3.5mm TRS to XLR Male Coiled Output Cable
- USB-C Charging Cable
- Sennheiser BA 70 Rechargeable Battery Pack for EW-D Bodypack and Handheld Transmitters
- 2 x AA Battery
- Mounting Kit
- Limited 2-Year Manufacturer Warranty
