Description

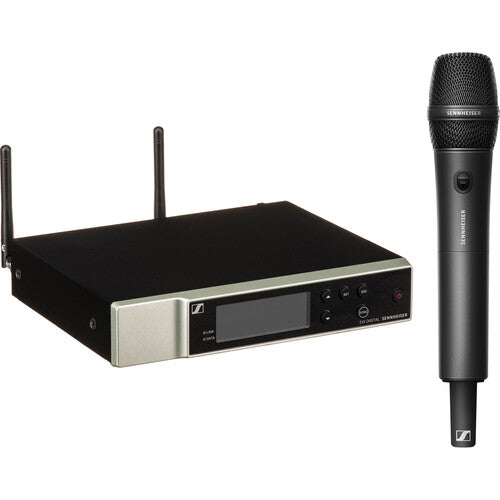

The Sennheiser EW-D 835-S SET Digital Wireless Handheld Microphone System delivers pristine 24-bit digital sound with a remarkable 134 dB dynamic range. Its easy Bluetooth setup app and equidistant tuning grid simplify operation, making it ideal for professionals and newcomers alike. Designed for diverse environments—from business and education to worship and live performances—this rackmount-ready system ensures consistent, high-quality audio without the need for input-sensitivity adjustments. Experience reliable wireless freedom combined with sophisticated sound clarity in a user-friendly package.
Features
- For Presenters and Performers
- Pro Features with Fast & Easy Set Up
- MMD 835 Dynamic Cardioid Mic Capsule

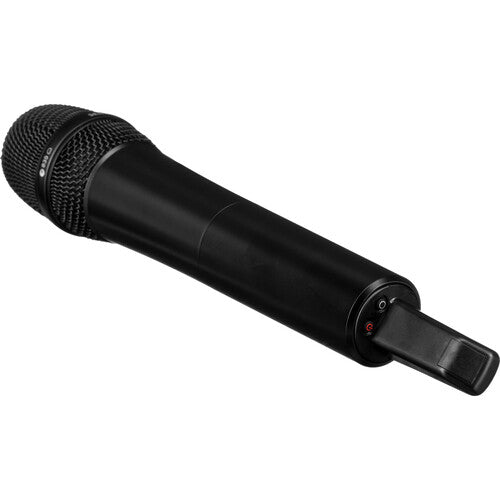

- Handheld Transmitter with Mute Switch

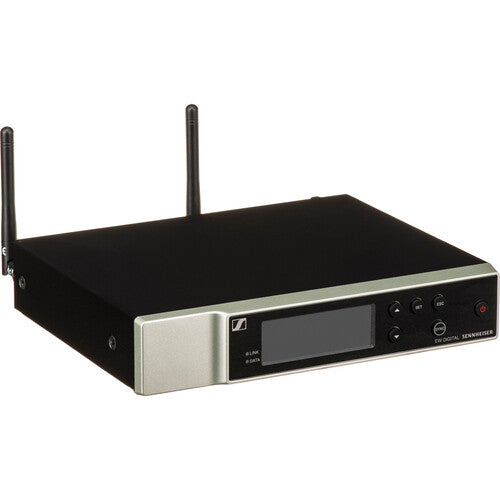

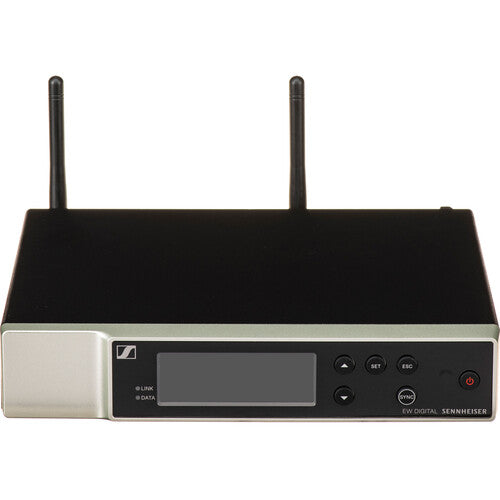

- Intelligent Diversity Rackmount Receiver
- 134 dB of Dynamic Range, 24-Bit Audio
- 2240 Frequencies on Equidistant Grid
- Set Up/Operate from Phone via Bluetooth
- 8-Hour AA /12-Hour Rechargeable Battery
- Expandable to 90 Mic Channels/330' Range
Specifications
| Wireless Technology | Digital UHF |
| Diversity | Yes |
| Max Operating Range | 100 m (Line of Sight) |
| Receiver Type | 1x Tabletop/Rack-Mountable |
| Number of Audio Channels | 1 |
| Included Transmitters | 1x Handheld |
| Microphone Type | X1 Handheld with interchangeable Capsule (MMD 835 Included) |
| System | |
| RF Frequency Band | 470 to 526 MHz |
| Number of RF Channel Frequencies | 2240 |
| Max Transmitters per Band | 90 |
| Dynamic Range | 134 dB |
| Latency | 134 dB |
| Encryption | No |
| Built-In Recorder | No |
| Mobile App Compatible | Yes: Android & iOS |
| App Name: Smart Assist | |
| Functionality: Remote Control | |
| Receiver | |
| Receiver Type | 1x Tabletop/Rack-Mountable |
| Mounting Options | Rackmount (with Included Hardware, 1 U Half-Rack) |

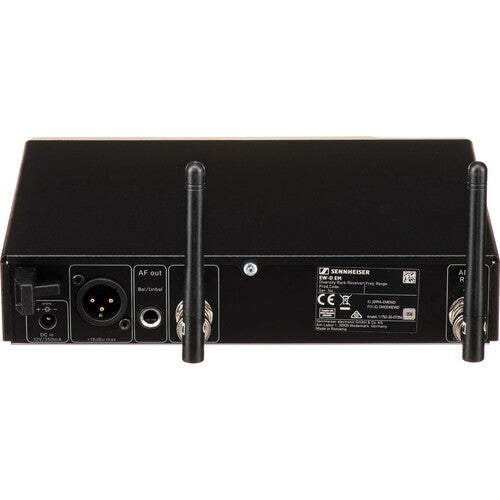

| Antenna | 2x Removable BNC External (Rear-Mount) |
| Number of Audio Channels | 1 |
| Audio I/O | 1x XLR 3-Pin Balanced Output |
| 1x 1/4" TS Unbalanced Output | |
| Network I/O | No |
| Word Clock I/O | No |
| Gain Range | -3 to +42 dB (3 dB Steps) |
| Frequency Response | 20 Hz to 20 kHz |
| Display | OLED |
| Power Requirements | AC/DC Power Adapter |
| · Transmitters | |
| Included Transmitters | 1x Handheld |
| RF Output Power | 10 mW |
| ≤ 10 mW | |
| Antenna | Fixed External |
| Input Level | Microphone |
| Audio I/O | No |
| Muting | Mute Switch |
| Auto-Level/Gain | No |
| Display | No |
| Microphones | |
| Microphone Type | 1x Handheld with Interchangeable Capsule (MMD 835 Included) |
| Polar Pattern | Not Specified by Manufacturer |
| Color | Black |
| Power | |
| Transmitter Battery Type | 2x AA (Not Included) or |
| 1x Sennheiser Battery Pack (Not Included) | |
| Transmitter Battery Life | 8 Hours (Alkaline) |
| 12 Hours (Sennheiser Battery Pack) | |
| AC/DC Power Adapter | 11 to 13 VDC at 300 mA (Included) |
| Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Environmental Resistance | Not Specified by Manufacturer |
What's in the box
- Sennheiser EW-D 835-S SET Digital Wireless Handheld Microphone System with MMD 835 Capsule (Q1-6: 470 to 526 MHz)
- Sennheiser EW-D EM Digital Wireless Receiver (Q1-6: 470 to 526 MHz)
- Sennheiser EW-D SKM-S Digital Wireless Handheld Transmitter with Mute Switch, No Mic Capsule (Q1-6: 470 to 526 MHz)
- Sennheiser MMD 835 Cardioid Dynamic Capsule for Handheld Transmitters (Black)
- Sennheiser MZQ 1 Clip for SKM Wireless Handheld Microphones
- 2 x Antenna Rods
- Rackmount Set
- 4 x Rubber Feet
- Sennheiser NT 12-5 CW+ Universal Power Supply for EW-D EM Wireless Receiver
- 2 x AA Batteries
- Limited 2-Year Manufacturer Warranty
