Description

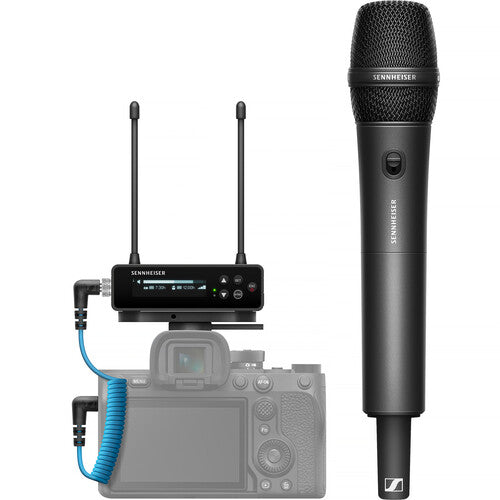

Portable digital UHF wireless microphone system with SKM-S handheld transmitter and MMD 835 cardioid dynamic microphone module for filmmakers, content creators, and broadcasters.
EW-DP delivers an industry leading audio workflow that only advanced digital technology and UHF transmission can offer. This fully digital UHF wireless microphone system features an all-new portable design and unmatched audio quality, purpose-built for filmmakers, content creators, and broadcasters. At the heart of EW-DP is a compact digital receiver that provides an intuitive user experience for all. Bluetooth synchronization and system control via our Smart Assist app help you save time and energy on set. A front facing OLED display allows for easy menu navigation and Smart Notifications help to troubleshoot your system when you encounter a challenge. Magnetic and stackable mounting configurations seamlessly integrate the receiver into your camera build while multiple powering options are ready to tackle long days on location. The EW-DP 835 Set includes the SKM-S handheld transmitter with the MMD 835 cardioid dynamic microphone module, ideal for on-camera interviews and capturing isolated dialog in noisy environments.
Features
- Fully digital UHF wireless microphone system for video applications
- Integrated Bluetooth for synchronization and control
- Smart Notifications for troubleshooting and system guidance
- Intelligent battery management provides operating time (hours:minutes)
- Extended battery life: up to 12h on transmitter, 7h on receiver
- Magnetically stackable components for versatile mounting
- Industry leading 134 dB dynamic range for distortion free transmission
- Up to 56 MHz bandwidth for flexibility in any RF environment
- Exceptionally low latency (1.9 ms)
- External charging and powering via USB-C (receiver only)
- Smart Assist app for monitor & control
-
Optional plug-on transmitter features XLR & 3.5 mm inputs, +48V & recording via microSD (ENG Set or component only)
Specifications
| System | |
| Audio link frequency ranges | |
| Bluetooth® Low Energy (BLE) frequency range | 2402 - 2480 MHz |
| Audio frequency response | 20 Hz - 20 kHz (-3 dB) |
| @ 3 dBfs | |
| Audio THD | ≤ -60 dB for 1 kHz |
| @ -3 dBfs input level | |
| Dynamic range | 134 dB |
| System Latency | 1.9 ms |
| Operating temperature | -10 °C - +55 °C |
| Relative air humidity | 5 - 95 % (non-condensing) |
| EW-DP EK | |
| Input voltage | ~ 1.8 - 4.35 V |
| Input Current | Typ. < 250 mA / Max. < 400 |
| mA (BA 70) | |
| Typ. < 400 mA / Max. < 750 | |
| mA (2x AA batteries) | |
| < 300 mA@5 V (USB-C | |
| standalone) | |
| Power supply | 2x AA batteries 1.5V or BA70 |
| rechargeable battery pack or | |
| USB-C PD power supply | |
| (max.): | |
| 5V / 1500mA | |
| 9V / 900mA | |
| 12V / 700mA | |
| Transmit power (radiated) | BLE: max. 10 mW EIRP |
| Audio output power | < 2 dBV max. (high level) / < |
| 4dBU max (high level) | |
| Headphone Output | < 50 mW into 16 Ohms |
| Dimensions | 86 x 67 x 28 mm |
| Weight (without antennas and power supply) | approx. 140g |
| EW-D SK (Bodypack Transmitter) | |
| Input voltage | 2.0 - 4.35 V |
| Input Current | < 300 mA |
| Power supply | 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack |
| Occupied bandwidth | 200 kHz |
| Transmit power (radiated) | Audio link: 10 mW ERP |
| (Range Y1-3: 12 mW ERP) | |
| Dimensions (without antenna) | BLE: max. 10 mW EIRP |
| Weight w/o batteries | approx. 304 g |
| ME 2 (Lavalier Microphone) | |
| Transducer principle | |
| Pick-up pattern | |
| Sensitivity in free field, no load (1kHz) | |
| Max. SPL at 1 kHz | |
| Frequency response | |
| Equivalent noise level A-weighted | |
| Connector | |
| Cable length | |
| Supply voltage |
What's in the box

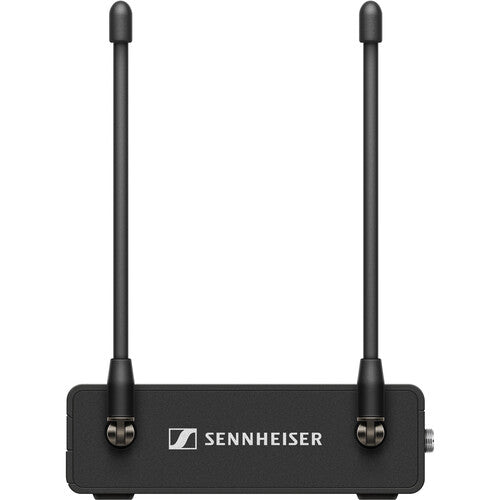

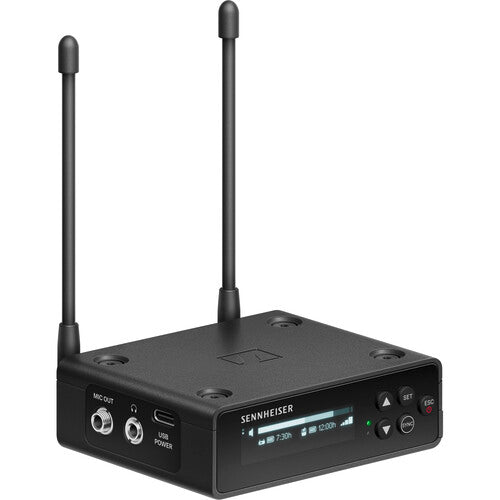

- 1x EW-DP EK digital portable single channel receiver
- 1x EW-D SKM-S digital handheld transmitter
- 1x MMD 835 dynamic cardioid microphone module

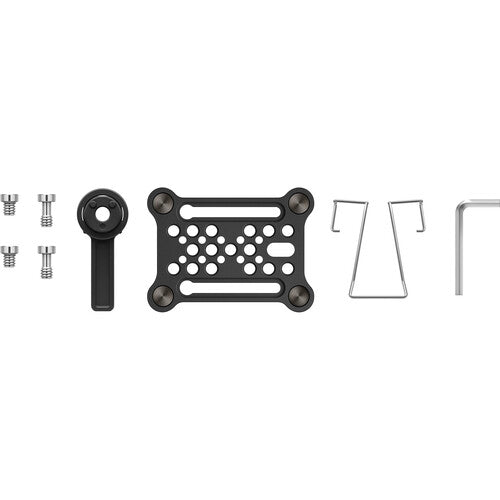

- 1x Mounting kit (Mounting plate, cold shoe, belt clip & screws)

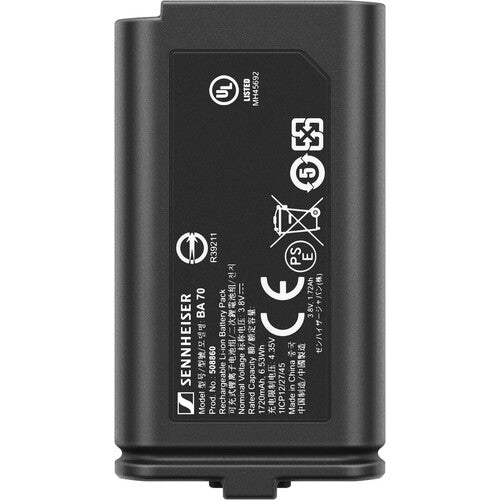

- 1x BA 70 li-ion battery & (2) AA battery
- 1x Locking 3.5 mm TRS plug to 3.5 mm TRS plug cable
- 1x Locking 3.5 mm TRS plug to XLR plug cable
- 1x USB-C charging cable
