Description

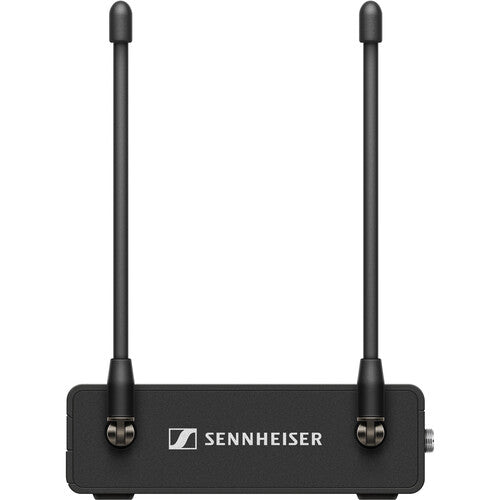

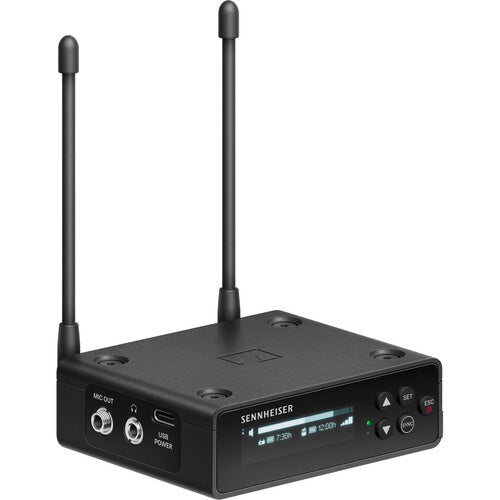

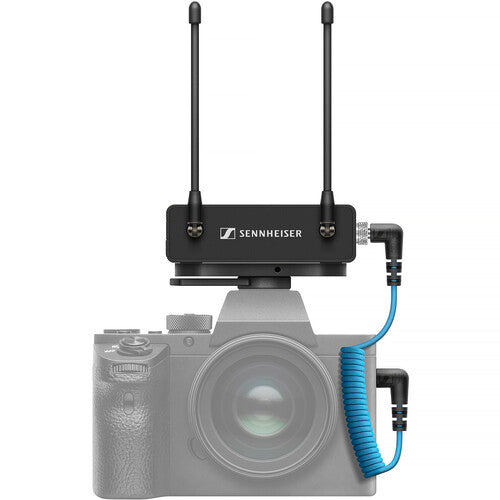

The Sennheiser EW-DP EK Camera-Mount Digital Wireless Receiver (S1-7) delivers reliable, crystal-clear audio with a wide frequency range of 606.2 to 662 MHz. Designed for professional use, this robust receiver mounts seamlessly on cameras, ensuring mobility without compromising sound quality. Its advanced digital technology minimizes interference, providing a secure wireless connection perfect for demanding shooting environments. Experience effortless integration and exceptional performance in a compact, portable design.
Features

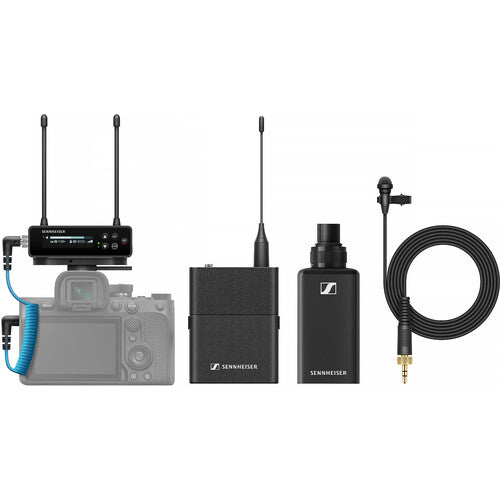

- Fully digital UHF wireless microphone system for video applications
- Integrated Bluetooth for synchronization and control
- Smart Notifications for troubleshooting and system guidance
- Intelligent battery management provides operating time (hours:minutes)
- Extended battery life: up to 12h on transmitter, 7h on receiver

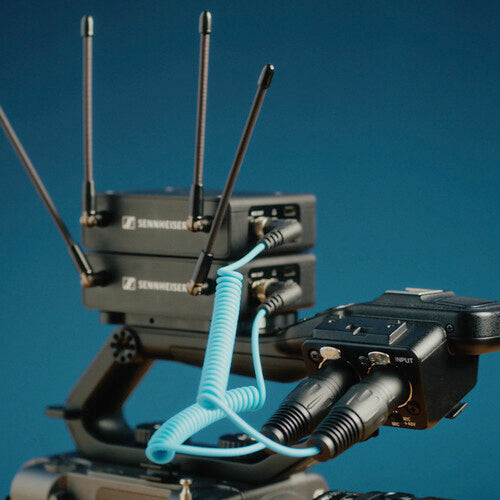

- Magnetically stackable components for versatile mounting
- Industry leading 134 dB input dynamic range for distortion free transmission
- Up to 56 MHz bandwidth for flexibility in any RF environment
- Exceptionally low latency (1.9 ms)
- External charging and powering via USB-C (receiver only)
- Smart Assist app for monitor & control
- Optional plug-on transmitter features XLR & 3.5 mm inputs, +48V & recording via microSD (ENG Set or component only)
Specifications
| System | |
| Audio link frequency ranges | - |
| Bluetooth® Low Energy (BLE) frequency range | - |
| Audio frequency response | - |
| Audio THD | ≤ -60 dB for 1 kHz |
| @ -3 dBfs input level | |
| Dynamic range | 134 DdB |
| System Latency | 1.9 ms |
| Operating temperature | -10 °C - +55 °C |
| A(14 °F - 131 °F) | |
| Relative air humidity | 5 - 95 % (non-condensing) |
| EW-DP EK | |
| Input voltage | ~ 1.8 - 4.35 V |
| Input Current | Typ. < 250 mA / Max. < 400 |
| mA (BA 70) | |
| Typ. < 400 mA / Max. < 750 | |
| mA (2x AA batteries) | |
| < 300 mA@5 V (USB-C standalone) | |
| Power supply | 2x AA batteries 1.5V or BA70 |
| rechargeable battery pack or USB-C PD power supply (max.): | |
| 5V / 1500mA | |
| 9V / 900mA | |
| 12V / 700mA | |
| Transmit power (radiated) | BLE: max. 10 mW EIRP |
| Audio output power | < 2 dBV max. (high level) / < |
| 4dBU max (high level) | |
| Headphone Output | < 50 mW into 16 Ohms |
| Dimensions | 86 x 67 x 28 mm |
| Weight (without antennas and power supply) | - |
| EW-D SK (Bodypack Transmitter) | |
| Input voltage | - |
| Input Current | - |
| Power supply | - |
| Occupied bandwidth | - |
| Transmit power (radiated) | - |
| Dimensions (without antenna) | - |
| Weight w/o batteries | - |
| ME 2 (Lavalier Microphone) | - |
| Transducer principle | - |
| Pick-up pattern | - |
| Sensitivity in free field, no load (1kHz) | - |
| Max. SPL at 1 kHz | - |
| Frequency response | - |
| Equivalent noise level A-weighted | - |
| Connector | - |
| Cable length | - |
| Supply voltage | - |
What's in the box
- 1x EW-DP EK digital portable single channel receiver
- 1x Mounting kit (Mounting plate, cold shoe, belt clip & screws)
- 1x BA 70 li-ion battery (508860) & (2) AA battery
- 1x Locking 3.5 mm TRS plug to 3.5 mm TRS plug cable
- 1x Locking 3.5 mm TRS plug to XLR plug cable
- 1x USB-C charging cable
