Description
The Sennheiser EW-DP ME4 SET Evolution Wireless Digital Lavalier combines cutting-edge digital technology and reliable UHF transmission for impeccable audio quality. Designed for filmmakers, content creators, and broadcasters, this portable system integrates seamlessly into any production workflow, ensuring clear, professional sound capture. Experience the precision and durability that only Sennheiser’s decades of wireless expertise can provide.
Features
- Fully digital UHF wireless microphone system for video applications
- Integrated Bluetooth for synchronization and control
- Smart Notifications for troubleshooting and system guidance
- Intelligent battery management provides operating time (hours:minutes)
- Extended battery life: up to 12h on transmitter, 7h on receiver
- Magnetically stackable components for versatile mounting
- Industry leading 134 dB dynamic range for distortion free transmission
- Up to 56 MHz bandwidth for flexibility in any RF environment
- Exceptionally low latency (1.9 ms)
- External charging and powering via USB-C (receiver only)
- Smart Assist app for monitor & control
- Optional plug-on transmitter features XLR & 3.5 mm inputs, +48V & recording via microSD (ENG Set or component only)
Specifications
| Wireless Technology | Digital UHF |
| Diversity | True Digital Diversity |
| Max Operating Range | 100 m (Line of Sight) |
| Receiver Type | Camera-Mount |
| Number of Audio Channels | - |
| Included Transmitters | - |
| Microphone Type | Lavalier |
| · System | |
| RF Frequency Band | - |
| Number of RF Channel Frequencies | 2240 |
| Max Transmitters per Band | 58 |
| Dynamic Range | 134 dB |
| Latency | 1.9 ms |
| Encryption | No |
| Built-In Recorder | No |
| Mobile App Compatible | Yes: Android & iOS |
| App Name: Sennheiser Smart Assist | |
| Functionality: Adjust Settings, Remote Control, Setup | |
| · Receiver | |
| Receiver Type | Camera-Mount |
| Mounting Options | Belt Clip, Shoe-Mount, 1/4″-20 Female (with Included Hardware) |
| Antenna | 2x 1/4 Wave Rod, Fixed (Rear-Mount) |
| Number of Audio Channels | 1 |
| Audio I/O | 1x 1/8″ / 3.5 mm TRS Unbalanced Output |
| 1x 1/8″ / 3.5 mm TRS Unbalanced Headphone Output | |
| Network I/O | No |
| Word Clock I/O | No |
| Gain Range | - |
| Frequency Response | - |
| Display | - |
| Power Requirements | Battery, Bus Power (USB) |
| · Transmitters | |
| Included Transmitters | Bodypack |
| RF Output Power | 10 mW (ERP) |
| Up to 10 mW (EIRP) | |
| Antenna | 10 mW (ERP) |
| Up to 10 mW (EIRP) | |
| Input Level | - |
| Audio I/O | - |
| Muting | Mute Switch |
| Auto-Level/Gain | No |
| Display | - |
| · Microphones | |
| Microphone Type | Lavalier |
| Polar Pattern | Cardioid |
| Color | - |
| · Power | |
| Transmitter Battery Type | - |
| Transmitter Battery Life | - |
| AC/DC Power Adapter | - |
| Input Power | - |
| Environmental Resistance | - |

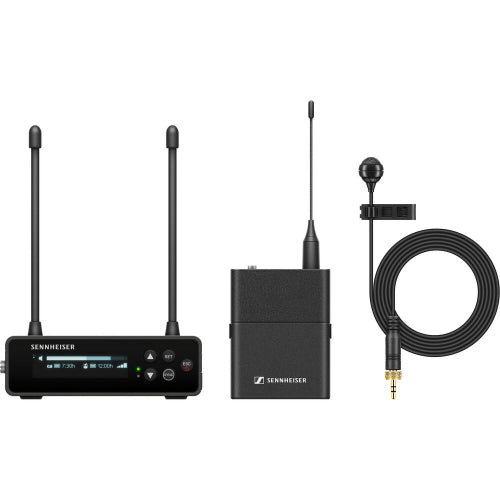

What's in the box

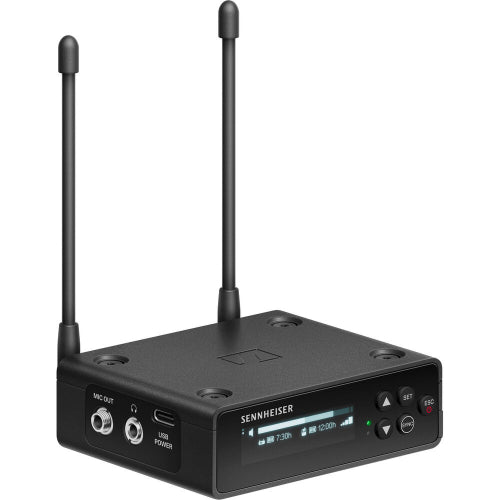

- 1x EW-DP EK digital portable single channel receiver
- 1x EW-D SK digital bodypack transmitter

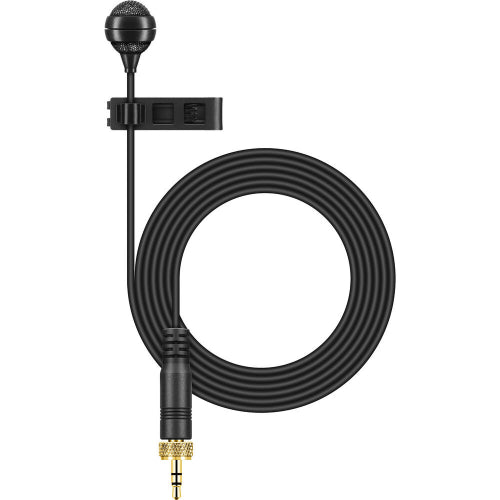

- 1x ME 4 cardioid lavalier microphone
- 1x Mounting kit (Mounting plate, cold shoe, belt clip & screws)
- 1x BA 70 li-ion battery & (2) AA battery
- 1x Locking 3.5 mm TRS plug to 3.5 mm TRS plug cable
- 1x Locking 3.5 mm TRS plug to XLR plug cable
- 1x USB-C charging cable
