Description

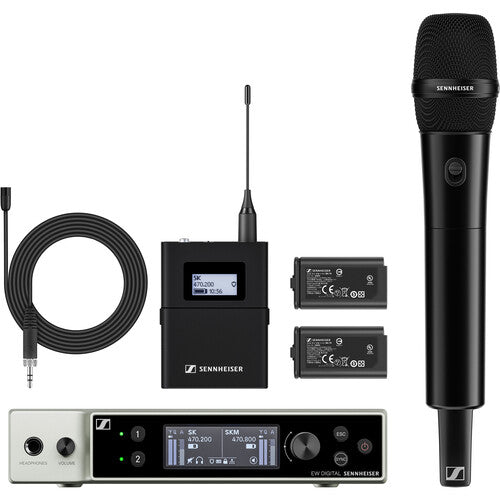

Rigorously engineered for professionals in business, education, and performance, the Sennheiser EW-DX MKE2/835-S SET is a versatile dual-channel digital UHF wireless system. It features a half-rack receiver, a bodypack transmitter with a subminiature MKE 2 omnidirectional lavalier microphone, and a handheld transmitter with a mute switch and MMD 835 cardioid capsule. Offering a wide 87 MHz tuning range and 134 dB dynamic range, this system ensures clear, reliable audio in demanding environments while streamlining your workflow with intelligent switching diversity.
Features
- For Two Presenters or Performers
- Includes 2-System Wireless Audio Bag
- MKE 2 Omni Lav Mic/Bodypack Transmitter
- MMD 835 Cardioid Mic/Transmitter
- 2-Channel Diversity Receiver
- Wide 80 MHz Bandwidth, 3200 Frequencies
- 134 dB of Dynamic Range
- AES-256 Encryption, RJ45 Networking
- Setup/Operate from Phone via Bluetooth
- 12-Hour Rechargeable Battery / 8-Hour AA
Specifications
| Wireless Technology | Digital UHF |
| Diversity | Yes |
| Max Operating Range | 100 m (Line of Sight) |
| Receiver Type | 1x Tabletop/Rack-Mountable |
| Number of Audio Channels | 2 |
| Included Transmitters | 1x Bodypack |
| 1x Handheld | |
| Microphone Type | 1x Lavalier |
| 1x Handheld | |
| · System | |
| RF Frequency Band | R1-9: 520 to 607.8 MHz |
| Number of RF Channel Frequencies | 3480 |
| Max Transmitters per Band | 293 |
| Dynamic Range | 134 dB |
| Latency | 1.9 ms |
| Encryption | AES 256 |
| Built-In Recorder | No |
| Mobile App Compatible | Yes: Android & iOS |
| · Receiver | |
| Receiver Type | 1x Tabletop/Rack-Mountable |
| Mounting Options | Rackmount (with Included Hardware, 1 U Half-Rack) |

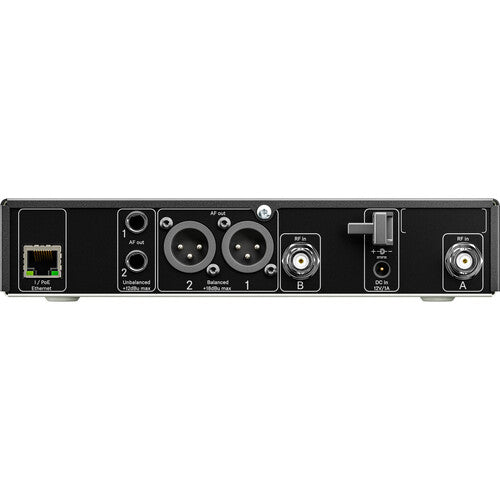

| Antenna | 2x Removable BNC External (Rear-Mount) |
| Number of Audio Channels | 2 |
| Audio I/O | 2x XLR 3-Pin Balanced Output |
| 2x 1/4" TS Unbalanced Output | |
| 1x 1/4" TRS Headphone Output | |
| Network I/O | 1x RJ45 |
| Word Clock I/O | No |
| Gain Range | - |
| Frequency Response | 20 Hz to 20 kHz +3 dB |
| Display | OLED |
| Power Requirements | AC/DC Power Adapter, PoE |
| · Transmitters | |
| Included Transmitters | 1x Bodypack |
| 1x Handheld | |
| RF Output Power | 10 mW |
| 10 mW | |
| Antenna | Internal |
| Input Level | Microphone |
| Audio I/O | 3.5 mm Locking TRS Female Input (on Bodypack Transmitter) |
| Muting | Mute Switch |
| Auto-Level/Gain | No |
| Display | Single-LED Indicators Only |
| · Microphones | |
| Microphone Type | 1x Lavalier |
| 1x Handheld | |
| Polar Pattern | Omnidirectional (Lavalier) |
| Cardioid (Handheld) | |
| Color | Black |
| · Power | |
| Transmitter Battery Type | 2x AA (Included) or |
| 1x Sennheiser Battery Pack (Not Included) | |
| Transmitter Battery Life | 12 Hours (Sennheiser Battery Pack) |
| 8 Hours (Alkaline) | |
| AC/DC Power Adapter | 11 to 13 VDC (Included) |
| Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Environmental Resistance | No |

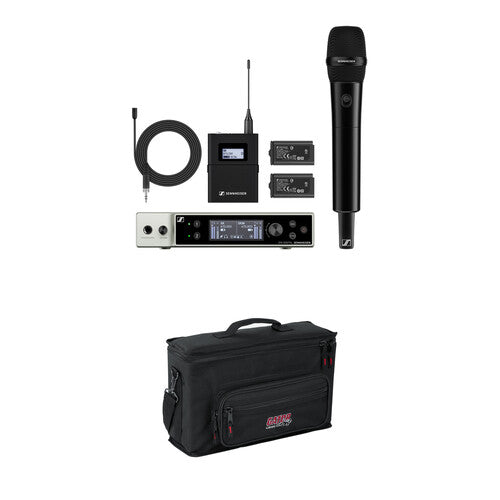

What's in the box
- Sennheiser EW-DX MKE 2-835-S SET Dual-Channel Digital Combo Wireless System with Omni Lavalier and Handheld Mic (R1-9: 520 to 607 MHz)
- Sennheiser EW-DX EM 2 Two-Channel Digital Rackmount Receiver (R1-9: 520 to 607 MHz)
- Sennheiser EW-DX SKM-S Digital Wireless Handheld Transmitter with Mute Switch, No Mic Capsule (R1-9: 520 to 607 MHz)
- Sennheiser MMD 835 Cardioid Dynamic Capsule for Handheld Transmitters (Black)
- Sennheiser MZQ 1 Clip for SKM Wireless Handheld Microphones
- Sennheiser EW-DX SK Digital Wireless Bodypack Transmitter with Locking 3.5mm Connector (R1-9: 520 to 607 MHz)
- Sennheiser MKE 2 Gold Series Subminiature Omnidirectional Lavalier Microphone with Locking 3.5mm Connector & Accessories (Black)
- Lavalier Mic Clip

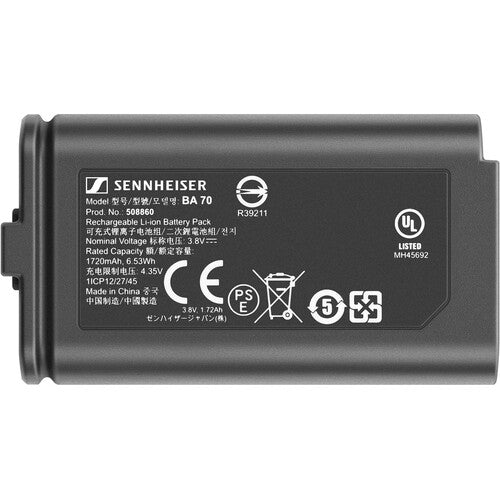

- 2 x Sennheiser BA 70 Rechargeable Battery Pack for EW-D Bodypack and Handheld Transmitters
- 2 x Rod Antenna
- GA 3 Rackmount Set
- 4 x Rubber Feet
- Sennheiser NT 12-5 CW+ Universal Power Supply for EW-D EM Wireless Receiver
- Limited 2-Year Manufacturer Warranty
- Gator GM-2W 2 Wireless Systems Bag
- Shoulder Strap
- Limited Lifetime Manufacturer Warranty (Non-Transferable)
