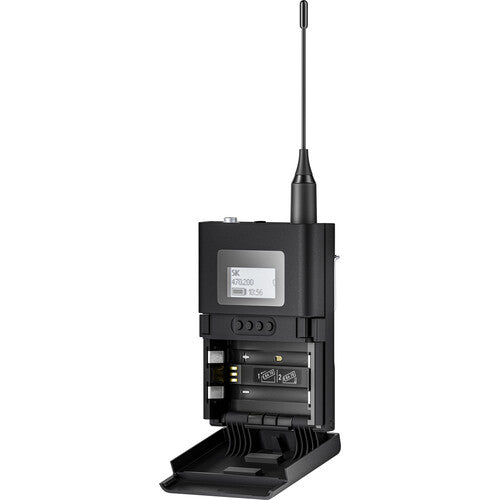

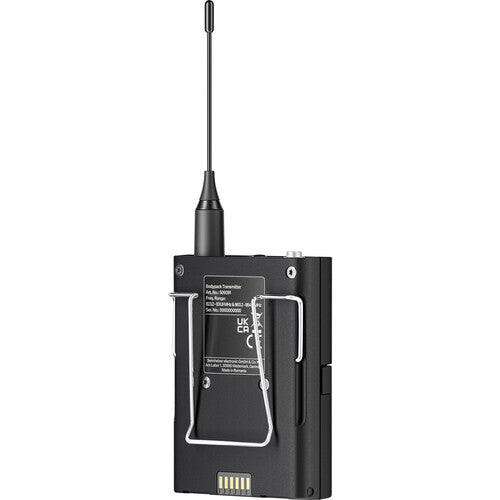

The Sennheiser EW-DX SK Bodypack Transmitter delivers pristine audio clarity with a wide frequency response of 20 Hz to 20 kHz and ultra-low distortion below -60 dB. Its dynamic range of 134 dB and minimal latency of 1.9 ms ensure seamless, high-quality wireless performance. Featuring a compact design, 10 mW transmit power, and an intuitive backlit eInk display, it offers precise control and flexibility. The programmable mute switch allows discreet audio or radio muting, enhancing usability in any professional setting. Ideal for Evolution Wireless Digital systems, this transmitter combines sophistication with reliable, cutting-edge technology.
Features
- 3,5 mm jack or 3-pin connector variants
- 10mW RF power with up to 100m/328ft working range
- Charging contacts for in-device charging with CHG 70N
- Persistent eInk display - parameters visible on screen even when device is not powered on
- Programmable mute switch - customize the device depending on your professional needs
- Extended runtime with lithium ion batteries - up to 12 hours operation time
- Mic input trim control
- Metal housing
Specifications
| System |
|
| Audio link frequency ranges |
S1-10: 606.2 - 693.8 MHz |
| Bluetooth® Low Energy (BLE) frequency range |
2402 - 2480 MHz |
| Audio frequency response |
20 Hz - 20 kHz (-3 dB) |
|
@ 3 dBfs |
| Audio THD |
≤ -60 dB for 1 kHz |
|
@ -3 dBfs input level |
| Dynamic range |
134 dB |
| System Latency |
1.9 ms |
| Operating temperature |
-10 °C - +55 °C |
| Relative air humidity |
5 - 95 % (non-condensing) |
| EW-DP EK |
-
|
| Input voltage |
- |
| Input Current |
- |
| Power supply |
- |
| Transmit power (radiated) |
- |
| Audio output power |
-
|
| Headphone Output |
-
|
| Dimensions |
-
|
| Weight (without antennas and power supply) |
-
|
| EW-D SK (Bodypack Transmitter) |
- |
| Input voltage |
2.0 - 4.35 V |
| Input Current |
< 300 mA |
| Power supply |
2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack |
| Occupied bandwidth |
|
| Transmit power (radiated) |
Audio link: 10 mW ERP |
|
(Range Y1-3: 12 mW ERP) |
|
LD Mode: 10 mW EIRP |
|
BLE: max. 10 mW EIRP |
| Dimensions (without antenna) |
63.5 x 85 x 20 mm |
| Weight w/o batteries |
approx. 115-120 g |
| ME 2 (Lavalier Microphone) |
- |
| Transducer principle |
-
|
| Pick-up pattern |
-
|
| Sensitivity in free field, no load (1kHz) |
-
|
| Max. SPL at 1 kHz |
-
|
| Frequency response |
-
|
| Equivalent noise level A-weighted |
-
|
| Connector |
-
|
| Cable length |
-
|
| Supply voltage |
- |
What's in the box
- 1 x EW-DX SK Bodypack Transmitter
- 1 x Clip
- 1 x Batteries Set (AA)
- 1 x Pouch
