Description
Pre-Order

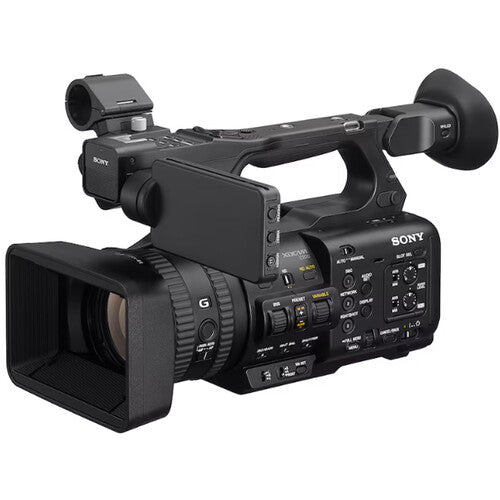

For the on-the-go content creators seeking fast and precise autofocusing, intuitive framing, and easy content sharing in a compact design, the Sony PXW-Z200 4K 1" CMOS Sensor XDCAM Camcorder is the perfect choice. With a focus on mobility, this upgraded version of the PXWZ190 boasts a 1"-type Exmor RS CMOS sensor capable of UHD 4K resolution, AI-assisted autofocus and framing, a variable electronic ND filter, advanced BIONZ XR processing, and seamless color matching with Sony Cinema Line cameras. Enjoy a 20x optical zoom and convenient built-in dual-band 2.4/5 GHz Wi-Fi and Ethernet connectivity for direct streaming via RTMP/RTMPS, SRT protocols, and FTP options. Use the Sony Monitor & Control app on your smartphone or tablet to preview your footage. Plus, a firmware update in the summer of 2025 will enable MXF wrapping for broadcast-friendly use Upgrade your content creation game with the Sony PXW-Z200 4K 1" CMOS Sensor XDCAM Camcorder, designed for those who demand fast and precise autofocusing, intuitive framing, and effortless content sharing. With a sleek and compact design, this upgraded version of the PXWZ190 boasts a 1"-type Exmor RS CMOS sensor, advanced BIONZ XR processing, and a variable electronic ND filter, all delivering stunning UHD 4K resolution. With AI-assisted autofocus and framing, you can trust that every shot will be perfect. Enjoy seamless color matching with Sony Cinema Line cameras and a 20x optical zoom for ultimate versatility. Plus, stay connected on-the-go with built-in dual-band 2.4/5 GHz Wi-Fi and Ethernet connectivity, allowing for direct streaming and FTP options. Preview your footage with ease using the Sony Monitor & Control app on your smartphone or tablet. And don't forget to look out for a firmware
Features
- Single 1" Exmor RS CMOS Sensor
- 12G-SDI Out, up to UHD 4K60 HDR with HLG
- 2.4/5 GHz Live Streaming, Timecode I/O
- AI-Powered Autofocus & Auto-Framing
- 20x Optical, 30x Clear Image Zoom in 4K
- 4K120 & 1080p240 High Frame Rates
- XAVC S-I, HS-L, S-L, HD/QFHD Recording
- S-Cinetone, ITU709, 709tone, HLG Options
- Dual CFexpress Type-A/SD Card Slots
- 4-Channel Audio, Monitor & Control App
Specifications
| ensor Resolution |
Actual: 20.9 Megapixel
Effective: 14 Megapixel |
| Image Sensor |
13.2 x 8.8 mm (1"-Type) CMOS
|
| Image Stabilization |
Optical in Integrated Lens
Digital |
| Built-In ND Filter |
2 to 7 Stop Electronic ND Filter
|
| Capture Type | Video Only |
| Shutter Type |
Electronic Rolling Shutter
|
| Shutter Speed |
1/8000 to 64 Seconds
|
| ISO Sensitivity Range | 250 to 16,000 |
| Gain | -3 to 36 dB |
| Shutter Angle | 5.6 to 360° |
| Minimum Illumination | 1.2 Lux |
| White Balance |
2000 to 15,000K
Presets: ATW, Auto |
| Focal Length |
7.71 to 154.21mm (35mm Equivalent: 24 to 480mm)
|
| Optical Zoom Ratio | 20x |
| Max Digital Zoom |
1.5x ( in UHD 4K)
2x ( in 1080p) |
| Maximum Aperture | f/2.8 to 4.5 |
| Minimum Focus Distance | 1.0 cm |
| Filter Size | 72mm |
| Focus Control | Autofocus Manual Focus |
| Internal Recording Modes |
XAVC HS-L
3840 x 2160 at 23.98/50/59.94/100/120 fps [30 to 280 Mb/s] XAVC S-L 3840 x 2160 at 23.98/25/29.97/50/59.94/100/120 fps [100 to 280 Mb/s] 1920 x 1080p at 23.98/25/29.97/50/59.94/100/120/150/180/200/240 fps XAVC S-I 3840 x 2160 at 23.98/25/29.97/50/59.94 fps [240 to 600 Mb/s] 1920 x 1080p at 23.98/25/29.97/50/59.94/100/120/150/180/200 fps |
| External Recording Modes |
SDI/BNC
3840 x 2160 at 23.98/25/29.97/50/59.94/100/120 fps 1920 x 1080p at 23.98/25/29.97/50/59.94/100/120 fps 1920 x 1080i at 50/59.94/100/120 fps 1920 x 1080PsF at 23.98/25/29.97 fps HDMI 3840 x 2160 at 23.98/25/29.97/50/59.94/100/120 fps 1920 x 1080p at 23.98/25/29.97/50/59.94/100/120 fps 1920 x 1080i at 25/29.97/50/59.94/100/120 fps |
| Fast-/Slow-Motion Support | Yes |
| Gamma Curve |
HDR-HLG, Rec709, S Cinetone, Sony S-Log 3
|
| Broadcast Output | NTSC/PAL |
| Built-In Microphone | Stereo |
| Audio Recording |
4-Channel 24-Bit 48 kHz LPCM Audio
|
| IP Streaming |
H.264, H.265, RTMP, RTMPS, SRT
3840 x 2160 at 50p, 59.94p (38.00 Mb/s) 3840 x 2160 at 23.98p, 25p, 29.97p (13.00 to 38.00 Mb/s) 1920 x 1080 at 50p, 59.94p (4.5 to 27.00 Mb/s) 1920 x 1080 at 23.98p, 25p, 29.97p (3.0 to 18.00 Mb/s) 1280 x 720 at 50p, 59.94p (2.3 to 13.5 Mb/s) 1280 x 720 at 23.98p, 25p, 29.97p (1.5 to 9.0 Mb/s) |
| Media/Memory Card Slot |
Dual Slot: CFexpress Type A / SD (UHS-II)
|
| Video I/O |
1x BNC (12G-SDI) Output
1x HDMI (Unspecified Signal) Output |
| Audio I/O |
1x 3.5 mm TRS Stereo Input
2x XLR 3-Pin Input 1x 3.5 mm TRRS Headphone/Mic Headphone Output |
| Power I/O | 1x USB-C |
| Other I/O |
1x BNC (Timecode) Input/Output
1x 2.5 mm Sub-Mini (Remote) Control 1x RJ45 (LAN) Control 1x USB-C (USB 3.2 / 3.1 Gen 1) |
| Wireless |
2.4 / 5 GHz Wi-Fi 5 (802.11ac)
|
| Mobile App Compatible |
Yes: Android & iOS
|
| Global Positioning (GPS, GLONASS, etc.) | No |
| Display Type |
Articulating Touchscreen LCD
|
| Display Size | 3.5" |
| Type |
Built-In Electronic
|
| Size | 0.39" |
| Diopter Adjustment | -4 to +3 |
| Focus Type |
Auto and Manual Focus
|
| Autofocus Points |
Phase Detection: 475
|
| Operating Temperature | 0 to 40°C |
| Storage Temperature | -20 to 60°C |
| Battery Type |
Sony BP-U Series
|
| Power Consumption | 20 W |
| Shoe Mount |
1x Intelligent Hot Shoe
|
| Dimensions (W x H x D) |
175.6 x 201.3 x 371.6 mm
|
| Weight |
1.96 kg (Body Only)
|
What's in the box
- Sony PXW-Z200 4K 1" CMOS Sensor XDCAM Camcorder
- AC Adapter
- Power Cord
- Battery Charger
- Battery Pack
- LCD Hood
- Lens Hood
- Eyecup
- Microphone Holder
- Cold Shoe Kit
- Limited 1-Year Manufacturer Warranty
