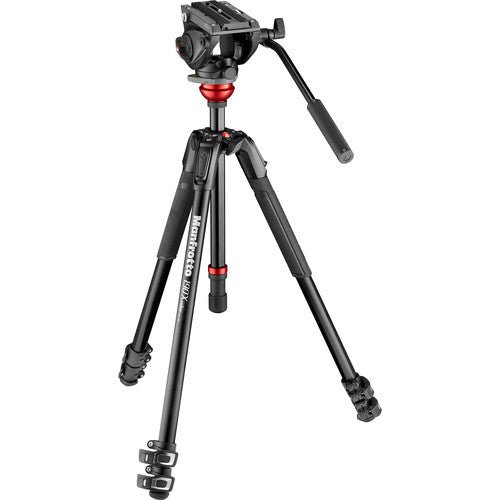

DescriptionThe Manfrotto 500 Fluid Video Head with 190X Video Aluminum Tripod & Leveling Column Kit includes a flat base fluid video head and a flat base 2-stage tripod with ball-leveling center column. The head features a wider-than-standard platform to provide better support for DSLRs, and supports a maximum load capacity of 11 lb. A 500PLONG quick release plate is included, and the head's side lock mounting system enables the plate to click in from above, instead of aligning and sliding in from one end.
Fluid cartridges on both the pan and tilt axes provide resistance for smooth, controlled pan and tilt. The tilt range is -70° / +90° and the pan rotation is 360°. The spring-loaded counterbalance is preset at 5.3 lb. The camera plate has both 1/4"-20 and 3/8"-16 camera screws, and the head has a 3/8"-16 tripod mounting thread and a 3/8"-16 Easy Link connector for accessories such as a video monitor.
The 3-section tripod legs feature aluminum construction, and each leg extends in two stages. The built-in Quick Power Locks secure the legs at the length you select. The tripod legs are adjustable to a maximum height of just under 59" without extending the center column, and feature a spreader-less design with each leg featuring four independent locking positions of 25, 46, 66, and 88°.
- For Large Tripods with Round Feet
- 132 lb Load Capacity
- Cable Guards and Brakes
- Folds for Transport
|Camera Plate Features||Sliding Balance Plate|
|Camera Plate Type||500PLONG|
|Camera Mounting Screw||1 x 1/4"-20 Male
1 x 3/8"-16 Male
|Base Mount||3/8"-16 Female|
|Counter Balance||Fixed (5.3 lb / 2.4 kg)|
|Center of Gravity||2.17" / 55 mm|
|Pan Handle Fittings||2 x Rosette|
|Accessory Mounting||1 x 3/8"-16 Female Thread|
|Drag Control||Pan: Fixed
|Vertical Tilt||+90° to -70°|
|Independent Pan Lock||Yes|
|Independent Tilt Lock||Yes|
|Leg Lock Type||Flip Lock|
|Leg Positions||4 Positions|
|Independent Leg Spread||Yes|
|Maximum Working Height||68.23" / 173.3 cm|
|Minimum Working Height||9.8" / 24.89 cm|
|Folded Length||28.43" / 72.2 cm|
|Operating Temperature||-4 to 140°F / -20 to 60°C|
|Weight||7.05 lb / 3.2 kg|
|Package Weight||8.45 lb|
|Box Dimensions (LxWxH)||30 x 6 x 6"|
