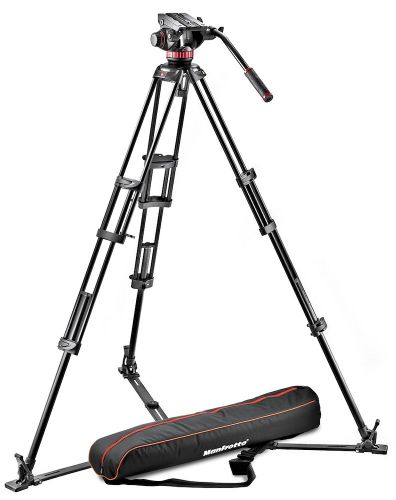

Manfrotto Kit MVH502A + 546GB + BAG (Padded) MVH502A,546GB-1
Description
The Manfrotto 502A Pro Video Head with 75mm Half Ball is an affordable yet remarkably fully featured professional head that represents an advance over the popular 501HDV, with sturdier construction and a half ball for precise leveling on a corresponding tripod. The 502A comes in two versions—the "A" ball-base version such as this one, and the "AH" flat-base version which is separately available.
Featuring Manfrotto's patented bridging technology (inherited from the 509 and 504 heads), the 502A is designed for executing cinematic moves with compact camcorders and DSLR video cameras. The weight limit is 15.43 lb and counterbalance supports up to 8.8 lb. The balance plate's 3.27" range allows you to correct for uneven payloads that might be due to matte boxes or exotic DSLR rig configurations.
The bridging technology ensures that the pan friction control is intuitive and easy to set, but also protected against knocks. There are independent locks for pan and tilt, and drag for both is selectable in a continuous range from zero to the max level. This allows you to operate the head in a confident, smooth manner using the included pan bar.
The Manfrotto 546GB Pro Video Tripod with Ground-level Spreader is an aluminum two stage/3 section tripod that combines stability and strength with affordability. Reaching a maximum height of 62.4", the 546GB is capable of supporting up to 44 lbs (20kg). Its spiked feet come with rubber overshoes, allowing setups on both smooth floors and uneven surfaces, while a newly designed ground-level telescopic spreader keeps the legs exactly where you need them.
Features
- For video tripods with 75mm half balls
- 75mm half ball connects to the corresponding bowl in a tripod
- Pan drag and tilt drag are continuously adjustable from 0 (no drag) to the maximum level
- Sliding quick release plate secured by secondary safety system
Specifications
Camera Mounting Screw | 1 x 1/4"-20 Male 1 x 3/8"-16 Male |
Balance Plate Sliding Range | 3.27" / 83 mm |
Load Capacity | 15.43 lb / 7 kg |
Counter Balance | Fixed (8.8 lb / 4 kg) |
Dimensions | 5.91" / 15 cm |
Package Weight | 5.695 lb |
Box Dimensions (LxWxH) | 15.2 x 8.7 x 8.6" |
Manfrotto 546GB Pro Video Tripod with Ground-Level Spreader Specs
Head Mount Type | 75 mm Bowl |
Load Capacity | 44 lb / 20 kg |
Maximum Working Height | 62.4" / 158.5 cm |
Minimum Working Height | 12.8" / 32.5 cm |
Folded Length | 27.17" / 69 cm |
Materials | Aluminum |
Bubble Level | Yes |
Weight | 7.72 lb / 3.5 kg |
Leg Lock Type | Flip Lock |
Independent Leg Spread | No |
Leg Sections | 3 |
Leg Diameter | 1" / 25 mm |
Feet Features | Rubber, Removable |
Center Column Features | Center Brace |
Package Weight | 9.8 lb |
Box Dimensions (LxWxH) | 31 x 9 x 9" |
