YoloBox Extreme All-in-One Live Streaming Encoder

The YoloBox Extreme is an all-in-one live streaming encoder, switcher, monitor and recorder from YoloLiv, built for teams running multi-camera broadcasts without a full production truck. It handles up to 8 HDMI inputs, switches between 20 simultaneous sources, and streams in UHD 4K over Wi-Fi 7, Gigabit Ethernet, or 4G LTE. A Qualcomm Snapdragon 8Gen2 processor drives the encoding, while the 11.2" OLED touchscreen (1000 cd/m² brightness) gives full production control on-device, even in direct sunlight.

Built for: live events, conferences, houses of worship, sports broadcasts, corporate webinars, and remote production teams who need broadcast-grade output from a single carry-on unit.

Runtime: up to 10 hours on the built-in 10,000mAh battery, so it runs a full day of coverage without mains power.

Features

• Run a full multi-cam production from one device. Encoder, switcher, monitor and ISO recorder combined — no separate switcher or capture rig required.
• Stream to every platform at once. Simultaneous cross-platform streaming to YouTube Live, Facebook Live, Twitch, and Livestream via RTMP, RTMPS, RTSP, SRT, or NDI.
• Broadcast in true 4K. UHD 4K (3840×2160) encoding at up to 60fps via H.264/H.265, with ISO recording of individual camera feeds.

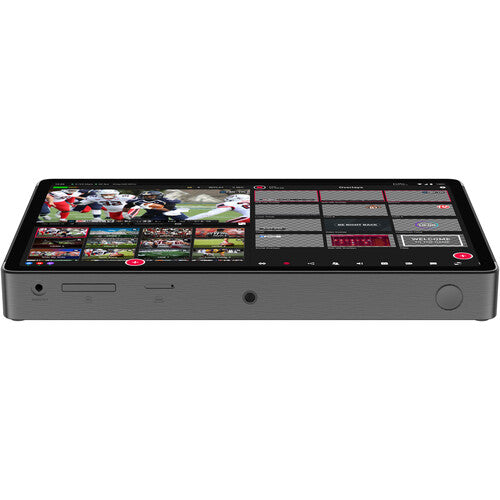

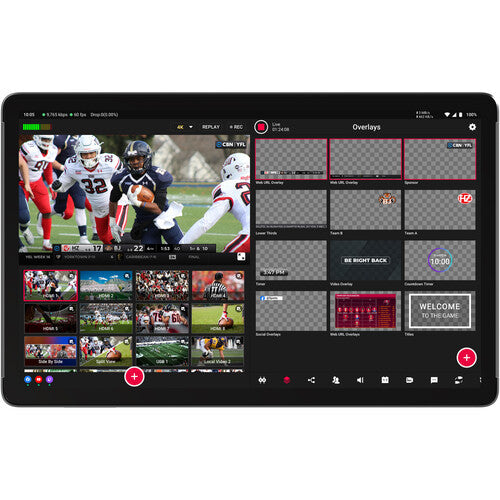

• See your production clearly outdoors. 11.2" OLED touchscreen at 1000 cd/m² brightness, readable in direct sunlight.

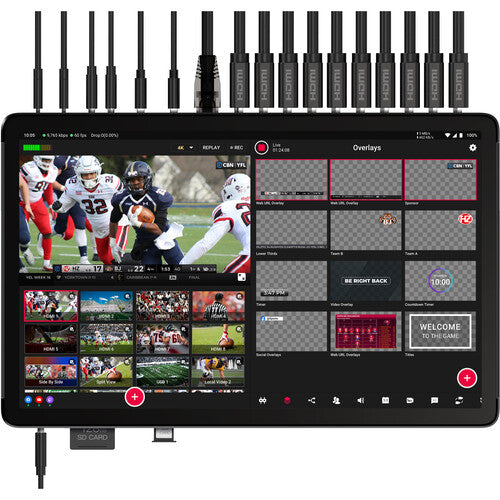

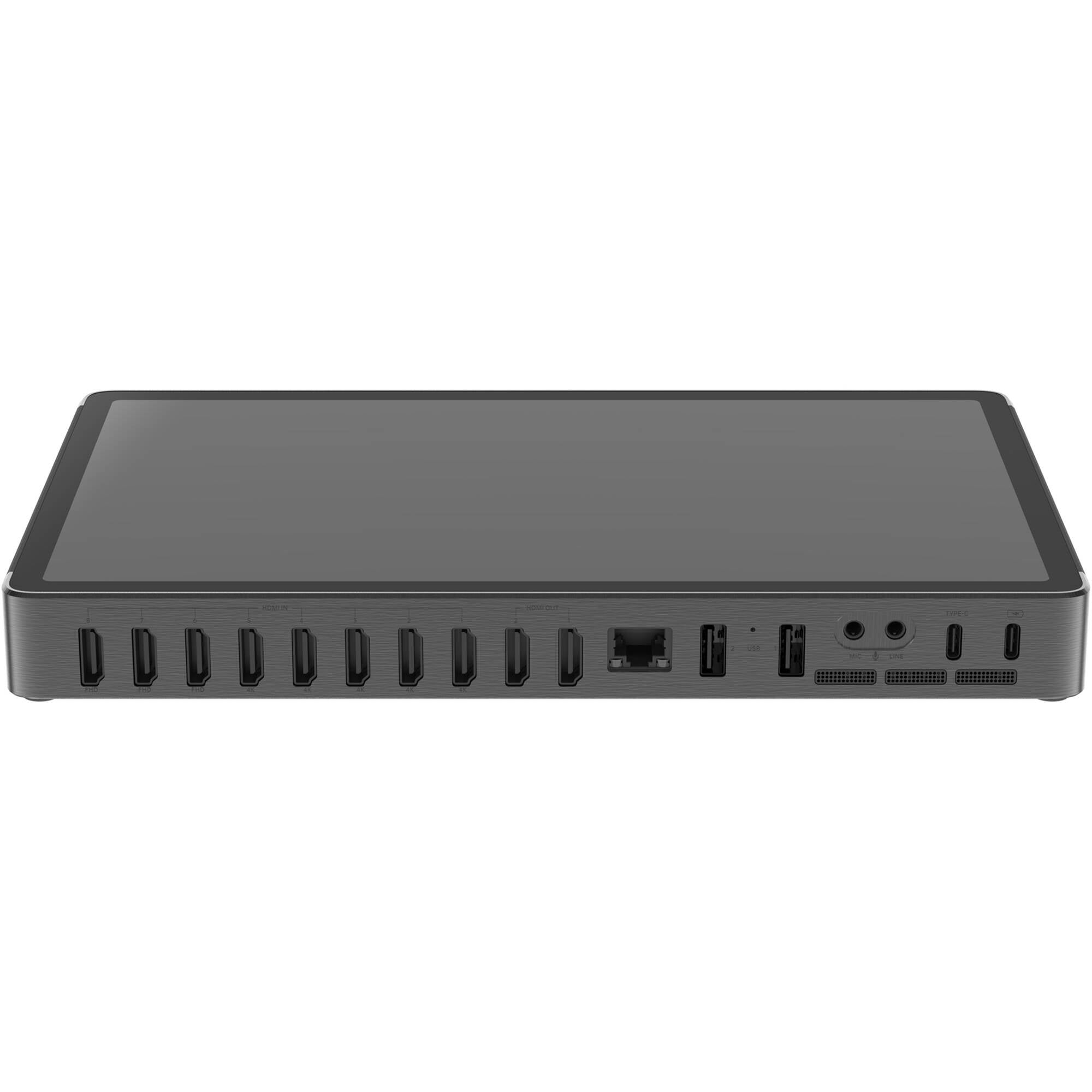

• Connect any camera or computer setup. 8x HDMI in, 2x HDMI out, 6x NDI, USB-C, and USB-A.
• Never lose connectivity mid-event. Triple redundant connection: Gigabit Ethernet, Wi-Fi 7, or 4G LTE (via nano SIM, optional adapter).
• Mix audio without an external board. Built-in audio mixing from HDMI and USB sources.
• Shoot a full day without mains power. 10,000mAh battery rated for up to 10 hours of continuous streaming.
• Store and back up on the fly. 128GB onboard storage plus SD card slot for local ISO recording.

Frequently Asked Questions

How many cameras can the YoloBox Extreme handle at once?

It has 8 HDMI inputs and 6 NDI inputs, and can switch live between up to 20 simultaneous sources including cameras, computers, and NDI feeds.

Does the YoloBox Extreme work without Wi-Fi or Ethernet?

Yes. It supports 4G LTE streaming via a nano SIM card with an optional adapter, in addition to Wi-Fi 7 and Gigabit Ethernet.

How long does the battery last?

Up to 10 hours of continuous streaming on the built-in 10,000mAh battery.

Can the YoloBox Extreme record each camera separately?

Yes, via ISO recording, capturing each connected camera source individually in addition to the switched program output.

What streaming platforms and protocols does it support?

YouTube Live, Facebook Live, Twitch, and Livestream, using RTMP, RTMPS, RTSP, SRT, or NDI protocols.

Is the YoloBox Extreme suitable for outdoor use?

Yes. The 11.2" OLED touchscreen reaches 1000 cd/m² brightness for outdoor visibility, and it is rated for 0–40°C at 15–85% humidity.

Specifications

Processor	Qualcomm Snapdragon 8Gen2
Video Inputs	8x HDMI
Video Outputs	2x HDMI
NDI	6x NDI input
Other I/O	1x RJ45 Gigabit Ethernet, 2x USB-A 3.0/3.1/3.2 Gen 1, 1x USB-C
Recording Media	1x SD card slot (type TBC with supplier), 128GB onboard storage
Transport Protocols	NDI, RTMP, RTMPS, RTSP, SRT
Video Encoding	H.264/H.265, 640×480 to 3840×2160 (4K UHD) at up to 60fps
Audio Encoding	AAC
Compatible Platforms	Facebook Live, Livestream, Twitch, YouTube Live
Wireless	Wi-Fi 7; 4G LTE via optional adapter
SIM Slots	1x Nano SIM
Display	11.2" OLED touchscreen, 1000 cd/m² brightness
Battery	10,000mAh, up to 10 hours streaming
Power Consumption	45W (device)
Power I/O	1x USB-A output (5V/1A), 1x USB-C input
Operating Conditions	0–40°C, 15–85% humidity
Dimensions	264 × 167 × 29 mm
Weight	1.5 kg
Warranty	1-year limited manufacturer warranty

What's In The Box

• YoloLiv YoloBox Extreme All-in-One Multi-Cam Livestreaming and Switching System
• USB-C Cable
• USB-A to USB-A Cable
• Cold Shoe Mount Adapter
• 2x Antenna
• SIM Card Eject Pin
• Allen Key
